In stock!

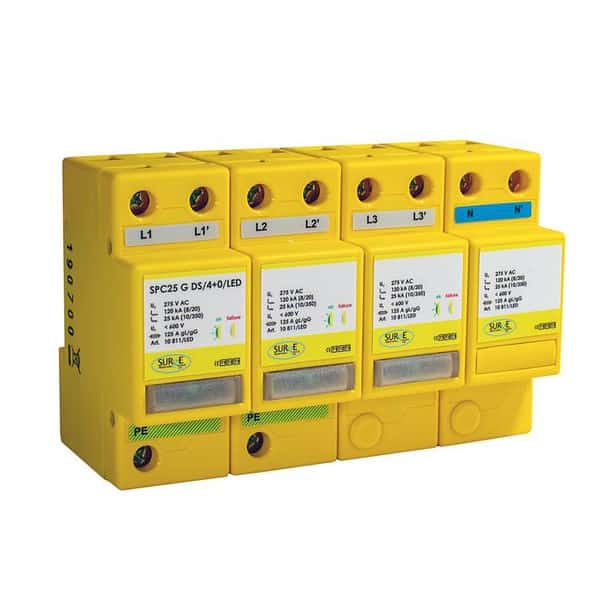

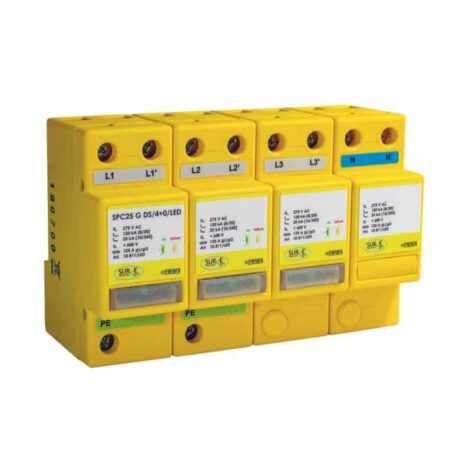

Type 1+2+3, 100kA (Level 1), 3 phase, all/full mode protection with LED indication. 10811


Categories: Surge Protection DevicesTags: SPDsSKU:

Lightning protection Level 1, highest protection level 100kA, 10/350µs.

Enhanced protection to BSEN62305, BSEN61643-11 & BS7671.

Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.

Very low let through voltage between all conductors less than 600V.

Full mode protection, phase to earth, phase to neutral, phase to phase, neutral to earth.

Three way visual indication of status.

Remote changeover contacts can be linked to BMS, buzzer, light etc.

Will extinguish follow currents after activation.

Internal thermal disconnector.

Din rail mountable.

Minimum back up fuse / MCB 63A.

Recommended cable size 25mm².

Can be supplied in polycarbonate IP65 or metal housing.

Manufactured in Europe.
