- Delivers 2 simultaneous 11kW 3-phase charging sessions (22kW total)

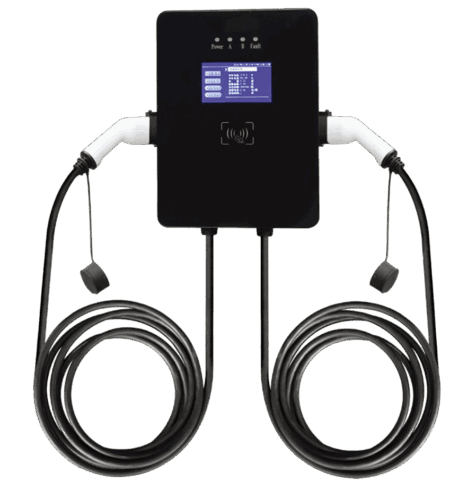

- Dual 5m tethered type 2 charging leads
- Robust metal construction
- Provided with pre-activated 12 month 4G SIM card (if requested)
- UK support team available (really helpful and supportive team)
- PEN Fault detection
- 4G SIM CARD included
- Backlit screen
- MID energy meter
- Plug & Play, App or Monta charge authorisation
- Recommended for schools, landlords, airbnb, commercial installations
The device is pre-loaded with Monta management software making it quick for installers to set up and connect their customers to a simple billing system.
UNIQUE MANUFACTURER INSTALLATION ASSISTANCE AVAIALBLE FOR TESIDA CHARGE POINTS – PLEASE CONTACT US FOR INFORMATION
Full data sheet is available here TESIDA OGJZTS-BG Data Sheet 22kW (Tethered Dual Wall Box) Pdf
Technical Specification
Input
Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 32A
Frequency 50Hz/60Hz
Output
Output Voltage 400V AC
Maximum Current 32A
Total Rated Power kW 22kW
Use
Appearance
Charge Connector Type 2 Sockets with Latching System
Cable Length N/A
Enclosure Powder Coated Fabricated Steel case with Reinforced Hinged Glass Door Entry
LCD Display 7.0”” Back Lit TFT Display Screen
Start Mode TFT Display Start Button, RFID User Card, MONTA App Controlled
Emergency Stop LED illuminated push button
Safety
Ingress Protection IP54
Impact Protection IK10
Leakage Protection TypeA+DC6ma
Ground Protection PEN Fault Protection
Electrical Protection
Over Current Protection, Residual Current Protection, Surge Protection, Over/Under Voltage
Protection, Over/Under Frequency Protection, Over/ Under Temperature Protection
Energy Meter Dual MID Certified Energy Meter
Certification Standard EN 61851-1 :2017, EN 61851-21-2-1 :2018, CE
Warranty 5 years (3+2)
Environment
Installation Wall Mounted or Post / Pedestal Mounted
Work Temperature -30°C~+50°C
Work Humidity 5%~95%
Work Altitude <2000m
Package
Product Dimension 465mm x 350mm x 130mm (H*W*D)
Package Dimension 615mm x 500mm x 280mm (H*W*D)
Net Weight 11 kg
Gross Weight 14 kg
External Package Fully Recyclable Cardboard Packaging
Features
Load Balancing Feature Remotely managed through MONTA Back Office Service Provider
Application MONTA App (None Master / Slave hard wired application)
Part No. Description
Untethered Dual Wallbox
