Autel MaxiCharger AC Ultra Dual 22kW – Pedestal

Product Overview

• The AUTEL MaxiCharger AC Ultra Fastest AC Charger supports charging for two vehicles simultaneously. ​
• It generates 140 km of range within 60 minutes at 22kW per port. ​
• Designed with ISO 15118 Plug & Charge for a hassle-free experience. ​

Design and Deployment

• Rugged design allows for wall or floor mounting, tailored for commercial use. ​
• One-piece construction simplifies installation, leading to lower costs and faster ROI. ​

Smart Charging Features

• OCPP compliance enables smart functionality and adaptability for future power usage. ​
• Reduces capital investment in power capacity, enhancing overall value. ​

Technical Specifications

• Charging mode: Mode 3; Input/output power: Single phase up to 27.4kW/32A, Three phase up to 222kW/32A. ​
• Dimensions: 625 x 320 x 170 mm; IP54 IK10 rating for weather resistance.
• Operating temperature range: -40°C to +55°C; Storage temperature range: -40°C to +85°C. ​

User Interface and Connectivity

• Features an 8-inch HD touch screen and supports Bluetooth, Wi-Fi, Ethernet, 4G, CAN, and RS485 connectivity.
• User authentication options include APP, RFID card, and credit cards.

Certification and Warranty

• Safety compliance with IEC standards; CE and TUV certifications available. ​
• Warranty of 36 months with an option for extension.

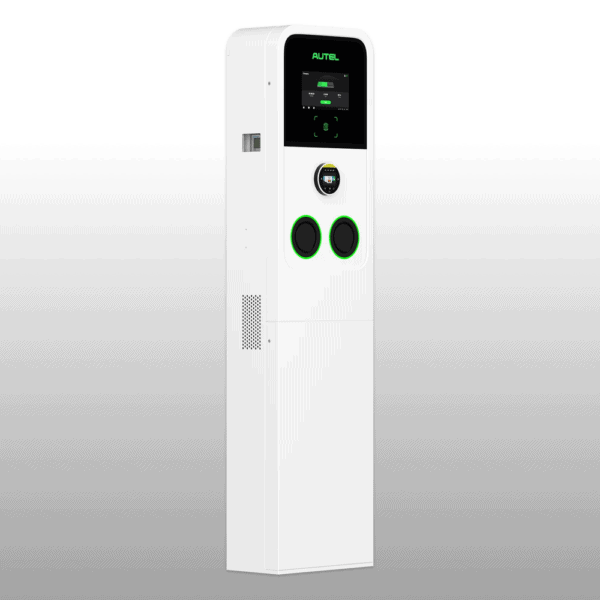

Image shows model with payment terminal, this is not included
