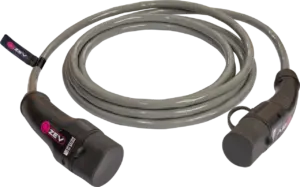

Cord EVIRA 10m 22kW Portable EV Charger

The document provides detailed specifications and safety features for the Cord EVIRA Portable Professional EV Charger. ​

Product Overview

• Available models: CRDWPC05M07KW, CRDWPC10M07KW, CRDWPC05M11KW, CRDWPC10M11KW, CRDWPC05M22KW, CRDWPC10M22KW, and Multi-Power versions. ​
• Power ratings: 7.4kW (32A), 11kW (16A), and 22kW (32A).
• Cable lengths: 5m or 10m options.
• Charging outlet type: Type 2. ​

Safety & Technical Specifications

• Input power supply options: 1 phase and 3 phase configurations. ​
• Rated voltage: 220-240V AC for single phase, 380-400V AC for three phase. ​
• Protection level: IP65 for control box, IK10 impact rating.
• Overcurrent, leakage, overtemperature, surge, and voltage protections included. ​

User Interface

• Features RGB LED light, LCD screen, and multifunction button. ​
• Supports functions like current selection, delay timer, and charging power set. ​

Mechanical Data

• Operating temperature range: 25°C to 45°C.
• Humidity tolerance: 5% to 95% without condensation.
• Weight varies by model: 4.4kg to 10.5kg.

Certification & Warranty

• Complies with safety standards: EN 62752, EN IEC 61000-6-1, EN IEC 61000-6-3, EN IEC 61851-21-2.
• Certifications: UKCA, CB, CE.
• Warranty period: 2 years.
