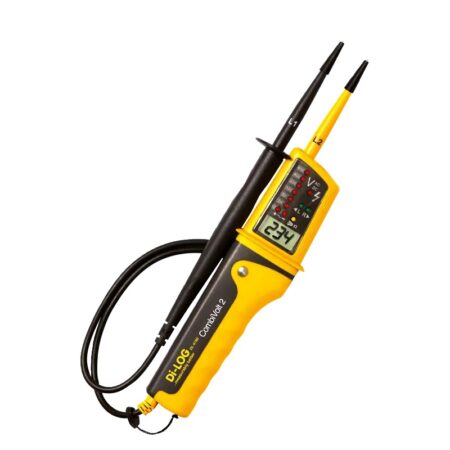

Di-Log CombiVolt™ 2 Voltage and Continuity Tester DL6790
£67.99
{£81.59} Inc VAT
- The DL6790 is a three-in-one tester designed for voltage indication, continuity testing, and phase rotation, compliant with BS EN 64213-3:2014.
- It meets safety standards of BS EN 61243-3:2014 and is rated CAT IV 600V, ensuring high safety during use.
- Key features include automatic switching between voltage and continuity, single-phase detection, and continuity testing with both optical and acoustic indicators.
- The tester operates within a voltage range of 12-690V AC/DC and has a frequency range of 0-400Hz, with a peak current of 3.5mA.
- It provides fully operational voltage indication even with discharged batteries and has an IP65 rating for dust and water resistance.
- The device dimensions are 225mm x 70mm x 28mm, weighing 200g, and powered by two AAA batteries, which are included.
Detailed description
Voltage & Continuity Testers
The Di-log CombiVolt 2 Digital Voltage & Continuity Tester with Phase Rotation test is the bench mark for voltage indicators. The three-in-one tester with a rugged, ergonomically formed housing for perfect handling is fully conformant to BS EN 64213-3:2014. The DL6790 also offers Single Phase Detection
Features:
- Testing of AC/ DC voltages from 12 to 690 V AC/DC
- Continuity testing with optical and acoustic indication
- Automatic switching between voltage and continuity
- Phase rotation test system
- Single pole phase indication
- Fully compliant with GS38
- Fully operational voltage indication even when batteries are discharged
- DL6790 with digital indication of voltage
- Will not trip any RCD when testing across Live and Earth
- Single pole detection when L2 probe connected above 100V
