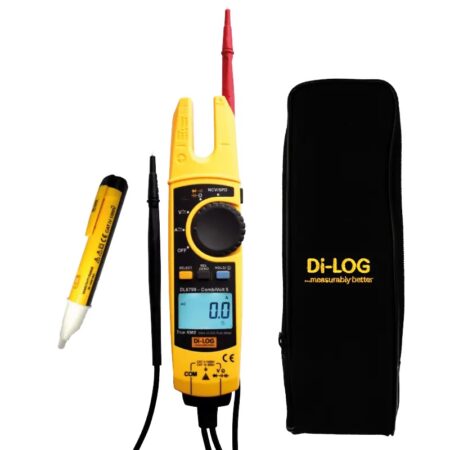

Di-Log CombiVolt 5 DL6799

The CombiVolt™5 meets safety standards including BS EN 61010-1 and is rated for CAT II 1kV and CAT III 600V.
It measures TRMS AC/DC voltages up to 750V and 1000V, with accuracy of ±1.2% for AC and ±0.8% for DC.
Current measurement capabilities include 200A for both AC and DC, with an accuracy of ±2.5%.
Resistance can be measured up to 60M Ohm, with audible continuity for values under 100 Ohm.
Additional functions include capacitance measurement (60.00nF to 60.00mF) and diode testing (up to 6.000V).
The device features non-contact voltage detection, single pole indication, and comes with GS38 shrouded probe tips and a carry case.
It operates on two AA batteries, has dimensions of 210 x 53 x 35 mm, and weighs 164g with batteries included.

Detailed description

1000V TrueRMSVoltage, Continuity & Current Tester

The NEW CombiVolt 5 is a five-in-one tester with a rugged, ergonomically formed housing for perfect handling. With a range of testing function including TRMS AC/DC voltages , TRMS AC/DC current, Non-Contact & Single Pole Voltage detection and a multitude of other functions the CombiVolt 5 offers complete versatility to the Electrical Engineer.
Fully conformant to BS EN 61010-1, 61010-2-032, CAT II 1000V & CAT III 600V

Features:

Meets safety and performance requirements of BS EN 61010-1

- 750V TRMS AC / 1000V DC voltage measurement
- Single Pole Voltage Detection
- Non Contact Voltage Detector
- Single pole voltage indication
- 200A TRMS AC /DC Current measurement
- 60M Ohm Resistance with Audible Continuity
- Capacitance
- GS38 shrouded probe tips
- Bright LED Flashlight
- FREE Carry Case
- FREE DL107 Non-Contact Voltage Detector
