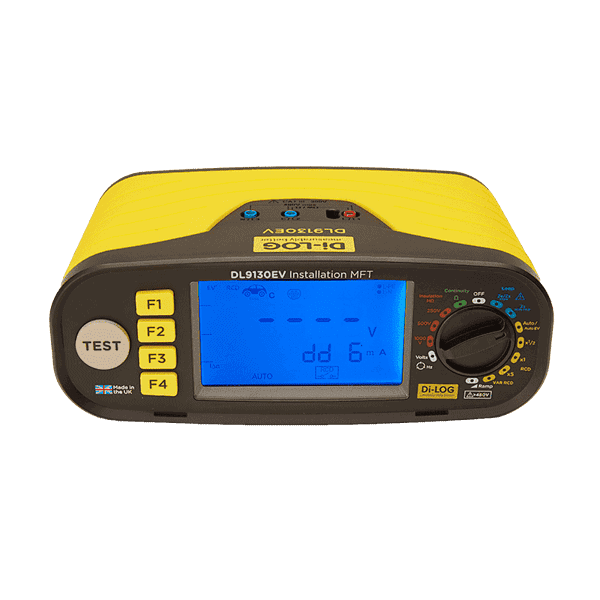

The DL9130EV 18th Edition Advanced EV Multifunction Tester has been explicitly designed for service engineers that offer EV installation as part of their electrical installation portfolio.
The DL9130EV has many new and exciting features critical to the safe verification of EVSE Charge Station Installation including a 6mA pure DC test for RDC-DD verification and a full EV testing sequence for verifying the DC protection provided by the EV charger, along with the Type A RCD protection.
Totally brand new feature explicitly added to the DL9130EV is Rmax, this brand-new concept will automatically capture the maximum R1+R2/R2 continuity test reading which will register the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
Type B RCDs are becoming more frequent in PV and EV installations, so it is vital that when needed, your multifunction tester can perform a Pure DC test. A variable RCD test has also been added to the DL9120 & DL9130EV enabling the user to dial in bespoke mA values when the need arises.
Along with a brand new RGB colour changing screen that visually indicates potential pass/fail conditions, the DL9130EV offers, at the press of a button, intelligent user features. Zmax, which will record the maximum Zs test recorded during a recording session, a fully automated Continuity & Earth Loop Auto Start with a secondary display to capture the recorded results. Never seen before on a multifunction tester, is the 2/3 wire high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection.
The DL9130EV offers incredible value for a feature-packed MFT meeting all the safety and performance requirements of BS EN 61557.
