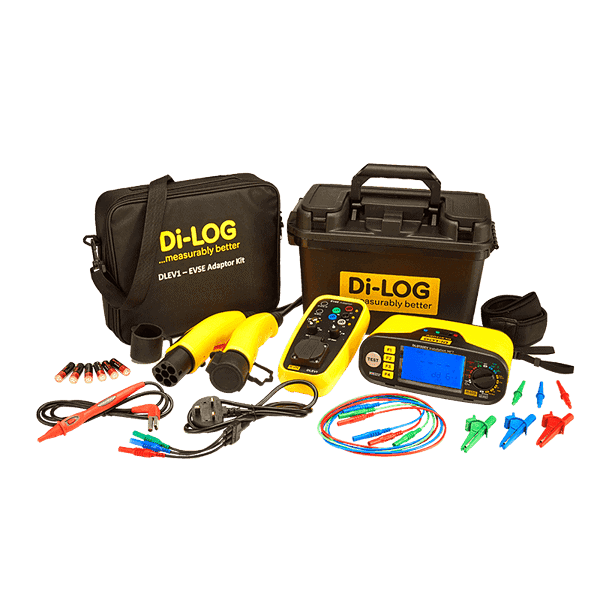

The DL9130EVKIT has been designed specifically for service engineers that offer EV installation as part of their electrical installation portfolio. The kit includes Di-LOG’s latest EV capable MFT along with the DLEV1 EVSE Charge Station Adaptor.
DL9130EV has many new and exciting features critical to the safe verification of EVSECharge Station Installation including 6mA pure DC test for RDC-DD verification and a full EV testing sequence for verifying the DC protection provided by the EV charger, along with the Type A RCD protection.
A totally new feature added specifically to the DL9130EV is Rmax, this brand-new concept will automatically capture the maximum R1+R2 continuity test reading registering the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
Along with a brand new RGB colour changing screen that visually indicates potential pass/fail conditions, the DL9130EV offers, at the press of a button, Zmax, which will record the maximum Zs test recorded during a recording session, the addition of a Type B RCD test, a fully automated Continuity & Earth Loop Auto Start with a secondary display to capture the recorded results, 2/3 wire high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection and a variable RDC test feature to dial in bespoke mA values.
The DLEV1 is a universal EVSE Charge Station Adaptor Kit that will simulate the Proximity Pilot (PP) States and Control Pilot (CP) States required to energise a free-standing or wall-mounted EV charger. Supplied with a type 1 and type 2 connector plug specifically designed for testing, the DLEV1 kit will also simulate PE Pre-test, CP Error “E” and PE Error with the added feature of CP signal output and load connection.
The DLEV1 has a 13A socket for MFT mains lead or can be used for inline load connection. In addition to this, there are also 4mm input terminals for single or 3-phase connections.
The DL9130EVKIT offers incredible value for a feature-packed MFT meeting all the safety and performance requirements of BS EN 61557.
