Di-Log Professional Plus Solar PV Test Kit SL350

£299.99
{£359.99} Inc VAT

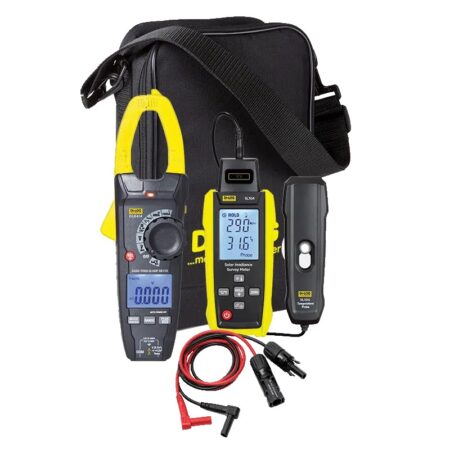

SL350 Professional Solar PV Test Kit

The SL350 kit facilitates the installation and maintenance of Solar PV Systems, measuring irradiance, temperature, current, and DC voltage up to 1000V.
It includes the SL104 Solar Irradiance Survey Tool, which measures solar irradiance, panel surface temperature, and roof pitch angle, complying with IEC 62446-1 standards.
The kit also features the DL6414 TRMS 1000A AC/DC Clamp Meter, capable of measuring AC/DC voltage up to 1000V and equipped with advanced functions like Inrush Current and Low Impedance.
Accessories include a 1000V Test Lead Set, external temperature probe, K-Type adaptor, and batteries, all supported by a 2-year warranty.

SL104 Solar Irradiance Survey Meter

This meter measures solar irradiance (up to 1400W/m²), cell surface temperature, roof pitch angle, and magnetic direction.
It features an inbuilt cell temperature sensor and an external probe for detailed temperature readings, along with a magnetometer and inclinometer for accurate surveys.

DL6414 TRMS 1000A AC/DC Clamp Meter

Designed for precise electrical measurements, it measures AC/DC current up to 1000A and voltage up to 1000V.
The meter includes features for Low Impedance, Inrush Current, and is rated for safety across various applications, making it suitable for both domestic and commercial solar installations.

Detailed description

The NEW SL350 Professional Solar PV Test Kit is designed to streamline the installation and maintenance of Solar PV Systems. This powerful toolset enables the measurement of Irradiance, temperature, current, and a wide DC Voltage range, including a Voltage Open Circuit (VOC) measurement up to 1000V DC.

At the heart of the SL350 is the NEW SL104 Solar Irradiance Survey Tool. This innovative device measures both solar irradiance and temperature. Users can conveniently measure the PV panel surface temperature with the built-in internal probe or the underside cell temperature with the attached external surface probe as outlined in IEC 62446-1. The SL104 also includes an inbuilt compass inclinometer, allowing for on-site surveys to measure roof pitch angle and proposed array direction with the directional magnetometer.

The SL350 is further enhanced by the inclusion of the latest DL6414 TRMS 1000A AC/DC Clamp Meter. This meter offers Voltage Measurement up to 1000V AC/DC, making it ideal for high VOC measurements on large domestic and medium commercial PV systems. Packed with advanced features such as Inrush Current, Low Impedance (LoZ), Variable Frequency Drive (VFD), and an inbuilt LED Flashlight, the DL6414 is equipped to handle the most demanding applications.

Kit includes:

SL104 – Solar Irradiance Survey Meter
DL6414 – TRMS 1000A AC/DC Clamp Metetr
SLLSC4 – Type 4 Solar Test Lead Set
CCDL001 – Test Kit Carry Case

Accessories included:

1000V Test Lead Set with GS38 shrouded
probes
External Temperature Probe
K-Type Adaptor
K-Type Temperature Thermocouple
Batteries

Key Features:

Solar Irradiance Measurement to 1400W/m2: Indicating in real time how much solar power is available to convert into electricity.
Inbuilt Cell Temperature Sensor: The inbuilt surface probe located on the base of the SL104 offers a quick indication of the surface cell temperature.
External Cell Temperature Probe: The attachable external probe connects directly to the SL104 and offers a quick indication of the underside cell temperature of the panel.
Inbuilt Magnetometer Compass: The inbuilt compass enables you to determine the roof direction to gain an accurate array direction.
Roof Pitch Inclinometer: The integrated inclinometer will assist to determine an accurate pitch of the roof angle the array is intended to be mounted on helping calculate the efficiency of the array. Applications: Electrical engineering | Domestic and commercial solar thermal and solar PV installation
