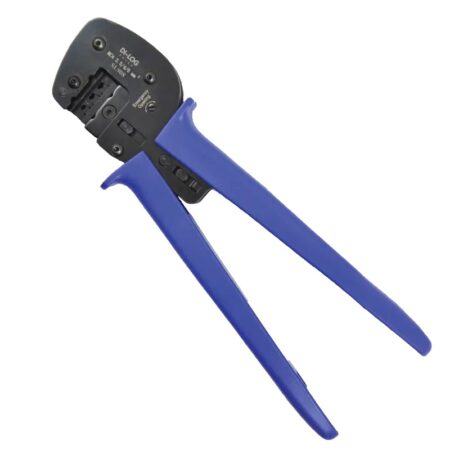

Di-Log Solar PV Type 4 Crimp Tool SL908

Type 4 MC4 Crimp Tool

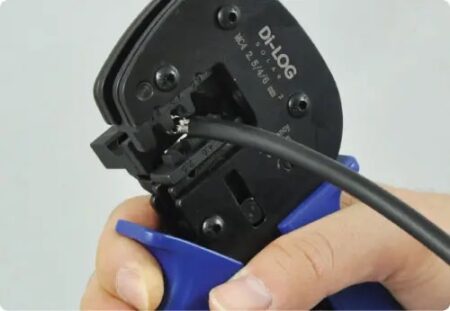

The Di-log Solar Crimping Tool is a high-precision ratchet mechanism for complete crimps. The SL908 Solar Crimping Tool is an industrial quality tool for crimping Type 4 MC4 Male and Female Solar Contacts, to crimp 26-10AWG pins (2.5~6.0mm²).

• 1.2 metric tons pressure at crimping face, with minimal hand effort
• Interchangeable high-precision crimping die set
• Optional Type 3 MC3 Die Set – SL907

Tools Parameters:

• Capacity:2.5-6.0mm²
• AWG:26-10AWG
• Length: 270mm
• Weight: 0.74Kg
