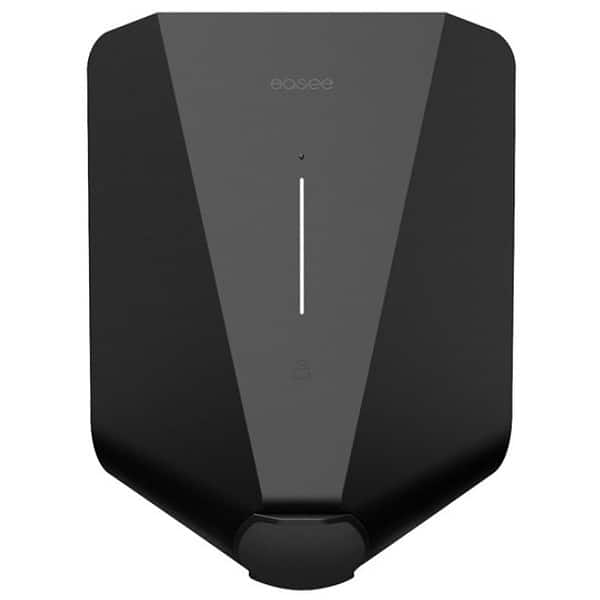

The Easee One 10523 is a secure and powerful 7kW electric vehicle charger. The Easee One has been developed specifically for the UK domestic market. It’s lightning-intelligent, gives you more power, smarter control and a high level of security.
Easee One is intelligent and adapts to all electric vehicles, power supplies and mains. With our home charging solution there is no need to think about technical specifications – the Easee One will automatically detect what power the vehicle requires.
Built to comply with UK regulations, the Easee One comes with both integrated type B RCD protection and open PEN conductor protection.
| Product Description: | Easee One 10523 1PH up to 7.4kW Black |
| Supplier Code: | 10523 |
| Product Type | AC Electric Vehicle Charging Station |
| Dimensions (H x W x D) | 256 x 193 x 106mm |
| Weight | 1.5kg |
| Colour | Black |
| Connector Type | Type 2 Socket |
| Charging Cable length | Not applicable |
| Warranty | 36 Months |

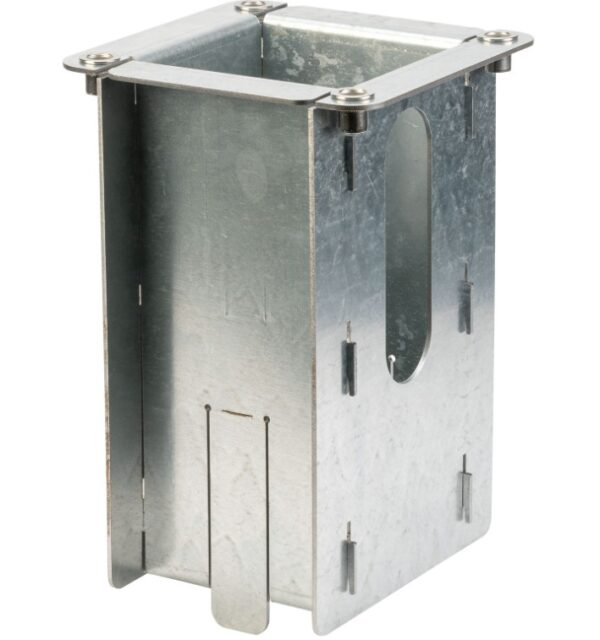

| Mounting Options | Wall or Post Mounted (Post mounting requires optional accessories) |
| Nominal Rated Voltage | 230VAC |
| Maximum Current (Amps) | 32A Single Phase |
| Rated Frequency | 50Hz |
| Charging Power | 7.4kW |
| Earth-Neutral (PEN) Fault Detection | Yes |
| DC Leakage Detection | 6mA |
| DC Leakage Protection Included | Yes |
| RCCB/RCBO Included | Yes, Type B RCCB |
| Maximum Input Cable Size | 3 core 16mm² (single cable) |
| Degree of Protection (IP) | IP54 |
| Impact Strength (IK) | IK08 |
| Operating Temperature | – 30ºC to 50ºC |
| Connectivity | WiFi, 4G/GPRS, Bluetooth, RFID, NFC |
| Charger Status Information | Device LED, Easee App |
| OZEV Approved | Yes |
| Dynamic Load Management | Single Phase Equaliser for Dynamic Load Management Available in Q1 2023 |
| OCPP Version | OCPP 1.6J |
Please note: Charge Points must be installed by an 18th Edition qualified Electrician and trained by the relevant manufacturer. The products warranty will be potentially void if not installed to this standard.
