Eastron ESCT-RC Series Flexible Rogowski Coli Current Sensor
From £35.00
Available
Eastron ESCT-RC Series Flexible Rogowski Coli Current Sensor
- High Linearity from 1A to 100kA.
- Wide dynamic range
- Very useful with large size or awkward shaped conductors or in places with limited access
- Not damaged by large overloads
- Measurement uniformity at any position of the conductor inside the coil
- Excellent degree of rejection to the external current conductor
- Totally shielded

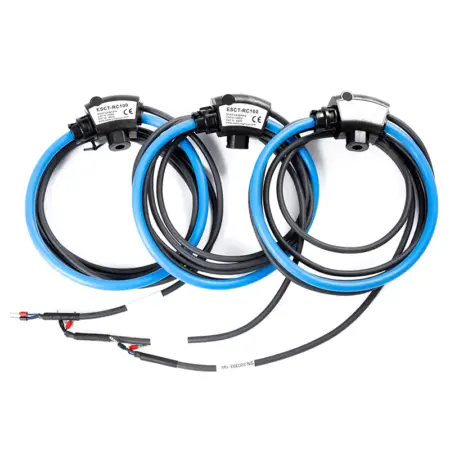

ESCT-RC Series are flexible current transducers based on Rogowski principle, particularly suitable for measurement in combination with portable devices. ESCT-RC coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications in which traditional transducers (Current Sensors) are not fitting due to its size and/or weight.
ESCT-RC Series provide with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA.
Rogowski Coil selection
|
Rogowski Coils Selection |
||||
|
Coil code |
Reference Rated Current |
Class |
Window Size(mm) |
Coil Length(mm) |
|
ESCT-RC60 |
500A |
0.2 |
50 |
200 |
|
ESCT-RC100 |
1000A |
0.2 |
100 |
395 |
|
ESCT-RC150 |
5000A |
0.2 |
150 |
525 |
|
ESCT-RC200 |
10000A |
0.2 |
200 |
665 |
-
