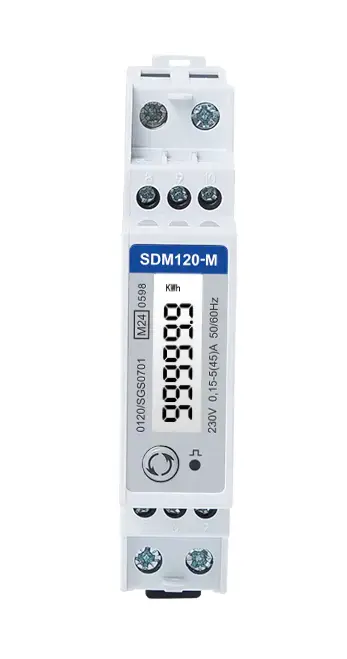

Eastron SDM120-M MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
£39.00
(£46.80 Inc. VAT)
Available
Available
Eastron SDM120-M MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- For 7 KW AC EV Charging Piles
- 2 Pulse Output +Modbus
- Bi-directional Measurement
- Max. 45A Direct Load
- 1 Module 18mm Width
- MID approved
- 1P2W
The SDM120-M is a MID Din Rail type Single Phase Multi-function energy meter for EV Charging metering. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. The units support Max. 45A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (Modbus) are provided for remote monitoring and setting.
This unit is one of ideal choices for 7kW AC EV Charging Piles.
