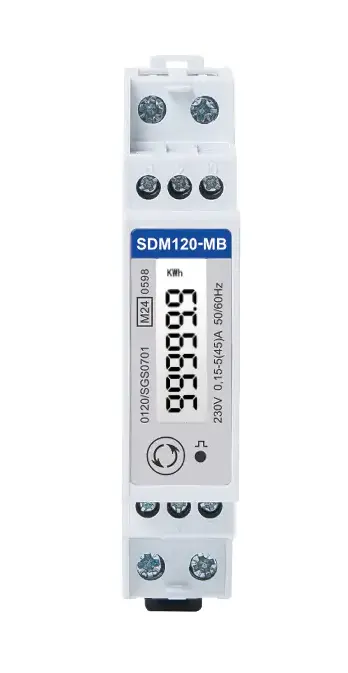

Eastron SDM120-MB Mbus Din Rail Single Phase Multi-function Energy Meter
£42.00
(£50.40 Inc. VAT)
Available
Available
Eastron SDM120-MB Mbus Din Rail Single Phase Multi-function Energy Meter
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- LCD with backlit
- 2 Pulse Output +Mbus
- Bi-directional Measurement
- Max. 45A Direct Load
- 1 Module 18mm Width
- MID approved
- 1P2W
SDM120-MB is a Din Rail Modbus Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. The units support Max. 45A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (Modbus) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, industrial and utility applications.
-
