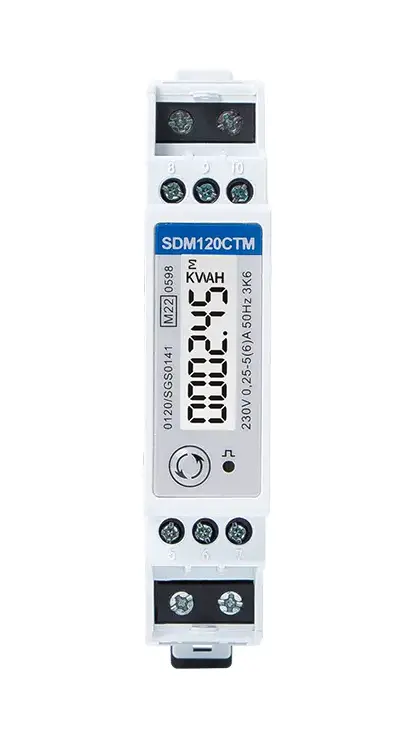

Eastron SDM120CT-M MID CT Type Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
£42.00
(£50.40 Inc. VAT)
Available
Available
Eastron SDM120CT-M MID CT Type Din Rail Single Phase Multi-function Solar PV /Zero Export Meter for PV Metering
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- For Solar PV Metering
- 2 Pulse Output +Modbus
- Bi-directional Measurement
- CT operated
- 1 Module 18mm Width
- MID approved
- 1P2W
The SDM120CT-M is a MID CT Type Din Rail Single Phase Multi-function Solar PV /Zero Export Meter with RS485 output for PV metering. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, popular with single phase PV solar power system. The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation. The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
-
