Eastron SDM230-DI MID/ UL Approved Single Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering

£52.00
(£62.40 Inc. VAT)

Available

Estimated Delivery Time:

Usually delivered 1-2 days from order

Available

SKU: SDM230-DI Category: EV Charge Points Tag: Eastron Brand: Eastron

Description

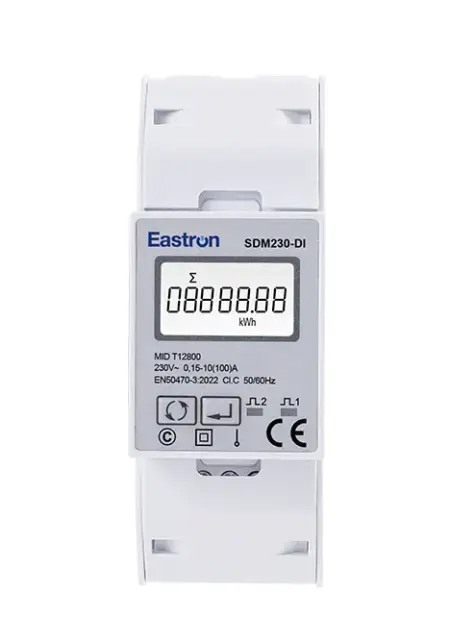

Eastron SDM230-DI MID/ UL Approved Single Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering

Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
For 7kW AC EV Charging Piles
Digital Input + RS485 Modbus RTU
Max. 100A Direct Load
2 Module 36mm Width
Bi-directional Measurement
1P2W
MID & UL Approved

SDM230-DI measures and displays the characteristics of single phase two wire (1p2w), including voltage, frequency, current, power, active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes.

The meter is Max. 100A direct connected and do not need to connect with external current transformers(CT). An RS485 communication port is available on the meter for remote data transmission.
