£900.00 {£1,080.00} Inc VAT



  • Charging rate: 22kW (32Amps)
  • Adjustable Amps
  • Connector type: Socket
  • Built-in PEN Protection
  • Integral 6mA DC leakage detection, no Type B RCD required
  • WiFi, CAT5 Ethernet, Bluetooth, 4G
  • Authorisation: RFID
  • OCPP 1.6
  • MID Meter
  • Solar charging (optional extra by using a CT clamp)
  • LED indicator
  • Colour: Black
  • Material: PC UV stabilized (UL94 V-0 fire rated)
  • Weather rating: IP54
  • Dimensions: H330xW220xD130mm
  • Weight: 4Kg
  • CE+UKCA Marked
  • Warranty: 3 Years

To be compliant with the Electrical Vehicles (Smart Charge Points) Regulations 2021, this EO Genius 2 EV charger requires the EO Cloud software subscription.

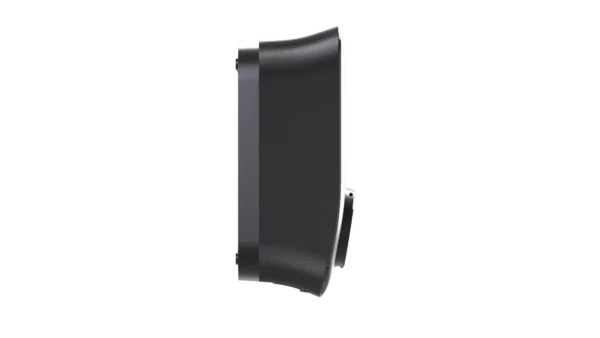

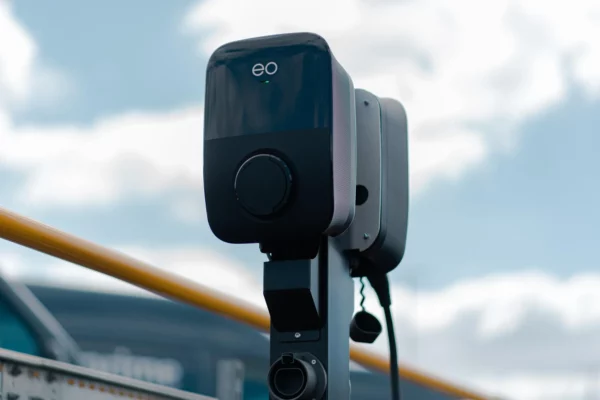

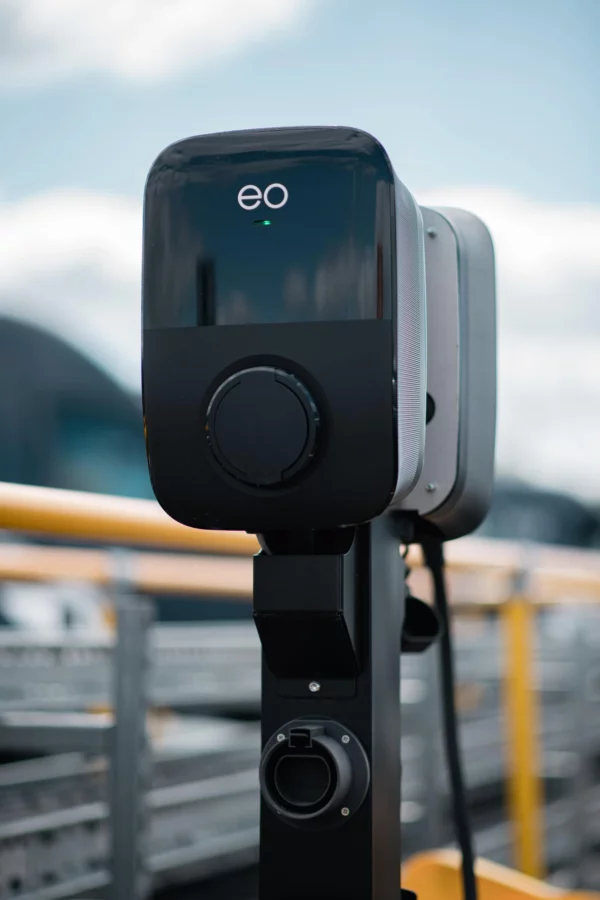

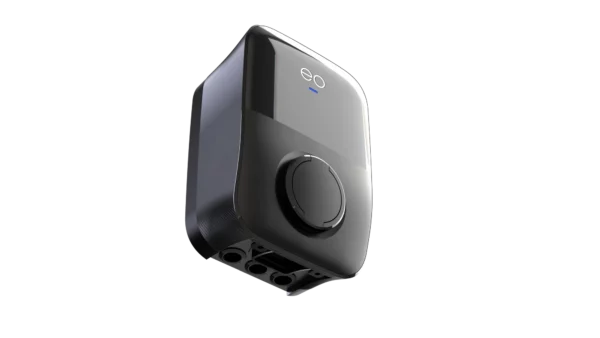

The EO Genius 2 – the EV charger that makes switching to electric a business advantage.

The EG203-PME-DCL-GSM is a compact design which is stylish, durable, impact, water and dust resistant and is easy to install. No need for earth rods with the built-in open PEN conductor protection.

This model is a 32A three phase 22kW, with a Type 2 socket.

Always connected! This charger has all the connectivity you would expect including WiFi, Bluetooth, Cat5 Ethernet and 4G Cellular as standard. . This charger is OCCP 1.6J back office compliant and ready for open OCPP integration or connection with the EO Hub 2.

Integrated RFID reader and MID meter are included as standard, making this a feature rich and user friendly device.

Detailed specification

Product Description: EO Genius 2 EV Charger 22kW Three Phase OCCP 1.6 and RFID
Replenishh Order Code: 65-4402
Supplier Code: EG203-PME-DCL
Product Type AC Electric Vehicle Charging Station
Dimensions (H x W x D) 330 x 220 x 130mm
Weight 4kg (without cable)
Colour Black (RAL9005)
Connector Type Type 2
Number of Output Connectors 1
Charging Cable length Not applicable
Warranty 36 Months
Mounting Options Wall or Post Mounted (Post mounting requires an additional backplate)
Nominal Rated Voltage 400VAC
Maximum current (Amps) 32A Three Phase
Rated Frequency 50Hz
Charging power 22kW
Earth-Neutral (PEN) Fault Detection Yes
DC Leakage Detection 6mA
DC Leakage protection Included Yes
RCCB/RCBO Included No, Requires Type A RCCB
Maximum Input Cable Size 16mm²
Degree of protection (IP) IP66
Impact Strength (IK) IK08
Operating temperature – 25ºC to 70ºC
Storage temperature – 30ºC to 55ºC
EVHS OZEV Approved Yes
WCS OZEV Approved Yes
Connectivity WiFi, Cat 5 Ethernet, Bluetooth
User Identification RFID Cards, Smart Charging Profiles
User Interface Desktop Software (Subscription Required)
Charger Status Information Device LED
MID Meter Yes
NMI Meter Optional
Dynamic Load Management Optional CT Clamp Required
OCPP Version OCPP 1.6J
