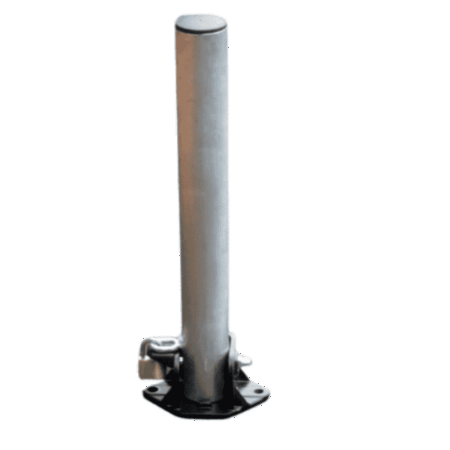

Product Specifications:

• Diameter: 63.5mm
• Height (above ground): 620mm
• Ground Clearance (in lowered position): 102mm
• Material:
  • Post – Galvanised steel
  • Base – Mild steel
• Standard Finish:
  • Post – Galvanised
  • Base – Powder coated, black
• Weight: 5kg
• Padlock: Hole on base for padlock is 12mm in diameter

Installation:

The floor mounted base is secured using 4 No. M10 Anchor Bolts (supplied) to a prepared concrete foundation.

Size of Masonry Drill required for the base 20mm

Post comes complete with Integral Lock, 4 No. M10 Anchor Bolts, 2 No. Keys.

Note:

Build in base available should you require this fitting into tarmac or block paving at an extra cost.
