EV Foundation – lightweight recycled material 15kg. 5600136

EV CHARGING STATION FOUNDATION
To accommodate the sharp increase in demand for electric vehicle (EV) charging stations, contractors will need product solutions that are easily installed, durable, cost-effective and future-proof.
PLP’s EV Charging Station Foundation is a pre-fabricated, precision-engineered solution for EV charging. This durable yet lightweight polypropylene foundation requires no specialized  machinery; it can be installed by one person in one day. The EV Charging Station Foundation’s design adapts to fit a wide range of chargers and charger pedestals/poles currently on

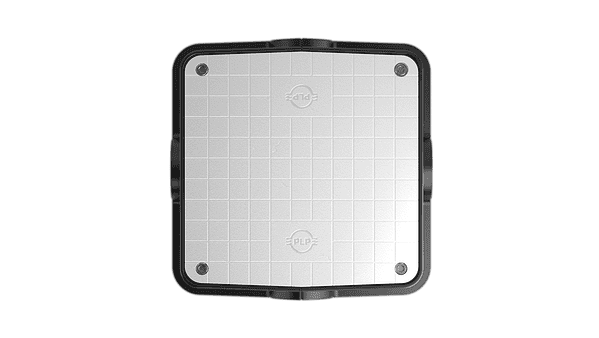

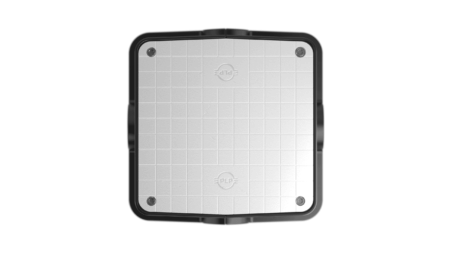

the market. The aluminium top plate provides a clean finish, is easy to drill, and is an access point for repairs and future upgrades.

FEATURES AND BENEFITS
• Make-ready solution that prevents future infrastructure changes
• Easy, one-day installation; no concrete pours or heavy machinery required
• Engineered solution creates a clean, uniform appearance
• Top plate can be modified to fit different Level 2 charging stations
• Manufactured from durable, weather-resistant polypropylene
• Four ports for versatility and future expansion
• Top plate creates easy access point for charger repairs, or replacements or upgrades
• Extensive testing to withstand frost heave, hydraulic lift, heavy traffic, and high winds (up to 150 mph), with no
chemical leaching

EV Installers shop comments:

This is the version 3.0 from PLP.

• lightweight to move around and position by single installer
• MUCH simpler to install than heavier concrete alternatives
• removable metal to plate
  • installer may drill holes to suit charger post or pedestal
  • Manufacturer can pre-drill holes on request
• Fix post or pedestal to metal base, then bolt whole assembly down to foundation block
• Use postcrete or similar to set foundation block in place, or even soil/ shingle for a removable, recyclable option
• 10mm hex key is required (not included)
• Good carbon footprint from recycled plastic

Delivery time 3-4 days for this product.

Shipping cost is £40.00 (added at checkout).

Orders over 25 are discounted for unit price and shipping by pallet – please contact us
