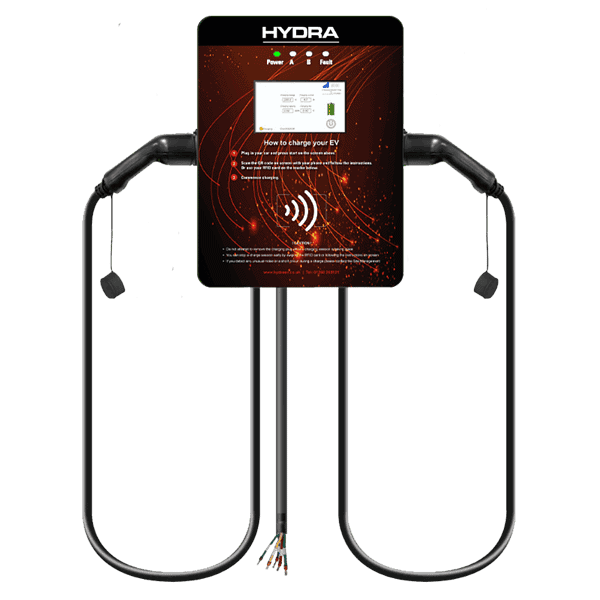

Hydra JOVI DUAL EV CHARGER 22kW – TETHERED

£1,950.00 {£2,340.00} Inc VAT

Quantity:
Qty:

UAL POWER, FAST CHARGING

The Hydra JOVI was designed and produced in response to customer demand for a wall-mounted Hydra Genesis alternative – our best-selling commercial, workplace and destination charging station.

While offering the same dual-output charging – either 7kW or 22kW – the housing is much more compact and suitable for wall mounting. Making it ideal for locations where space is a premium and a standalone totem-design, similar to the Genesis, is not suitable.

Wall mounting an EV chargepoint can also significantly reduce the installation costs as no major infrastructure work is required, other than installing the power cables to the chargepoints. Therefore the Hydra JOVI is perfect for covered car parks and parking spaces alongside a building or other solid structure.

Being dual output, only one JOVI is required to serve two EV parking spots, further reducing costs and streamlining the installation process.

The smaller form-factor of the JOVI does not impact the robust construction and reliability, nor does it limit the power and flexibility of the EV charging functions. The housing is metal, similar to our Genesis, to ensure many years of prolonged use.



Additional Information

Available in either dual 7kW or dual 22kW output versions. The 22kW unit offers faster charging for electric vehicles which can accommodate a higher level of AC charge input and can be connected to any three-phase 400v AC supply, similar to that which can be found in larger industrial premises, hotels and office blocks.

Charging a standard EV at 22kW can add up to 90 miles of range for each hour of charging, making this perfect for vehicles which are parked for longer periods, such as during the working day or at a hospitality venue.

The tethered unit – complete with 5m charging leads and industry standard Type-2 charging guns – ensures the JOVI is always ready to charge. The socket-only versions require the EV driver to use their own charging cables. The Jovi can be commissioned to allow access to the charging functions in a variety of ways: Plug and Charge, RFID card, Scan and Pay or Contactless Payment Terminal.

The Hydra JOVI has built-in safety functions which can shut down the charger if it detects input under voltage, input over-voltage, output short-circuit, output over-voltage, output over-current, battery reverse connection, insulation detection, communication failure, etc. Additionally there is an optional fail-safe emergency stop button which can be manually operated in the event of a failure.

The JOVI can be used as a single EV charging point or as a part of an organisation’s entire EV fleet ecosystem where charging facilities are required across multiple sites. It can be paired with our unique HYDRA CLOUD or HYDRA NEXUS platforms offering complete EV charging network management and real-time monitoring of charging usage and peak demand across the whole network.

Specification

  • Dual-output Type-2 charging
  • Dual 7kW or 22kW output
  • Tethered 5m cable or socket only
  • Wall or Pedestal Mounted
  • Metal construction
  • Single 240v or Three Phase 400v
  • Connectivity: Ethernet/Wi-Fi/GSM
  • Secured With OCPP 1.6J
  • IP65 weatherproofing
  • Contactless Payment Terminal (option)

Dimensions

  • 530mm high
  • 360mm wide
  • 120mm deep

Downloads

Datasheet-Hydra-Jovi

Delivery information

This product is delivered directly from the manufacturer, and requires preparation, building or commissioning prior to dispatch.

Dispatch is 3-5 days from the date of order, and delivery is a 24 hour service.

Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available
