MATT:E ARD-3-32-R-SPD EV CONNECTION UNIT, 3X 32A DP TYPE A RCBO + SPD

£1,050.00 {£1,260.00} Inc VAT

Quantity:
Qty:
Categories: EV Circuit Protection, 3 PhaseTags: 3-PhaseSKU: ARD-3-32-R-SPD

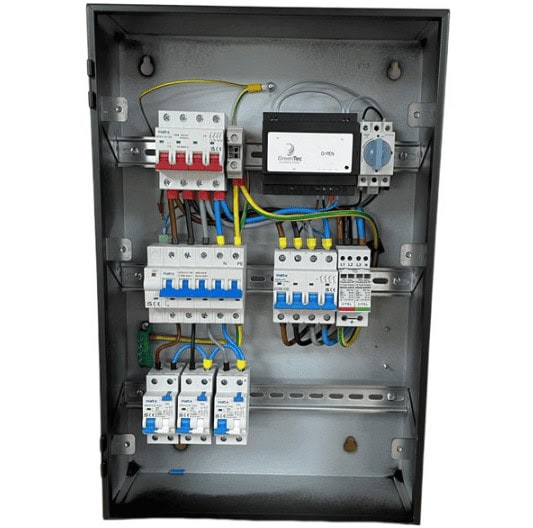

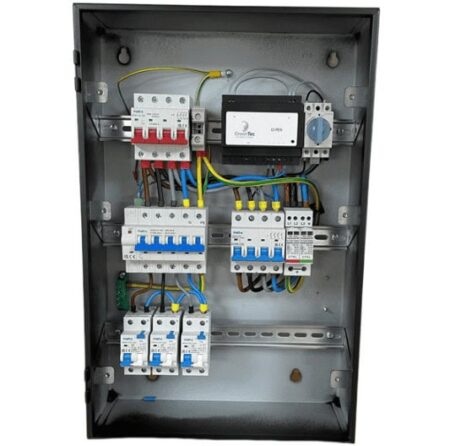

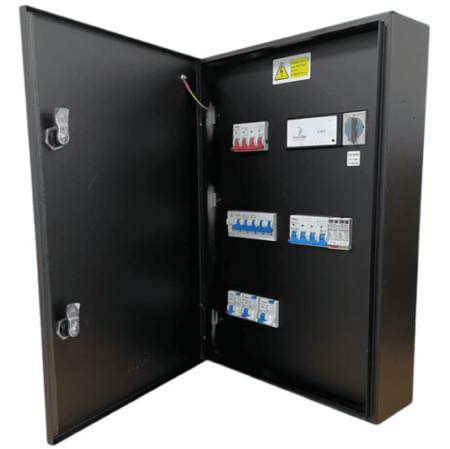

The matt:e ARD-3-32-R-SPD is a 3-phase connection unit, with a unique 5-pole auto-reset isolator device, built-in Type 2 SPD, and 3 x 32A DP Type A RCBOs.

Simple to install, it provides a dedicated EV connection unit with built in O-PEN® technology that allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.

Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1.(iii).



Colour Black
Dimensions (H x W x D) 550 x 360 x 120mm
Voltage rating 400V, 3-phase
Frequency 50Hz
Max. Load 32A/phase
IP rating IP4X
Material Mild steel
Finish Powder-coated
Warranty 1 Year
  • Built in O-PEN® technology
  • No Earth electrodes required
  • Facilitates compliance with regulation 722.411.4.1 (iii)
  • Helps reduce disruptive and costly groundworks
  • Removes the risk of striking buried services
  • Simple wire in wire out connection
  • For 3 x 32A load
  • Complete with Type 2 SPD & 5-pole Auto-reset Isolator
  • Built-in 3 x 32A Double Pole Type A RCBO
  • Mild steel IP4X enclosure
  • Standard 1 Year parts warranty
  • Designed and Built in the UK
    • Matt:e type ARD-3-32-R-SPD
