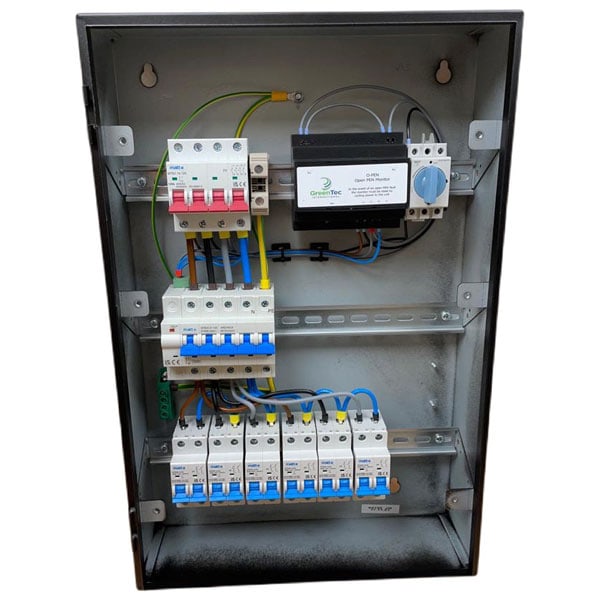

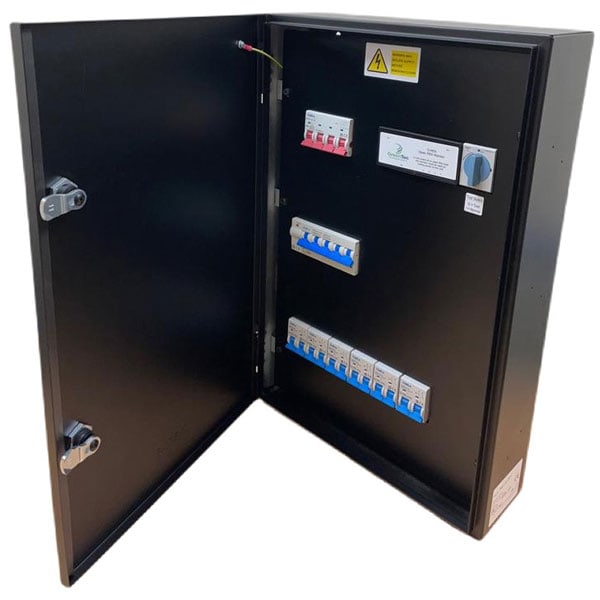

matt:e ARD-6-32-M Connection centre with O-PEN® and automatic reset 5 pole isolator with 6 x 32A DP MCBs.
£874.80
{£1,049.76} Inc VAT
Matt:e ARD-6-32-M Connection centre with O-PEN® and automatic reset 5 pole isolator with 6 x 32A DP MCBs.
The ARD-6-32-M from matt:e is a simple, single dedicated connection unit with built-in O-PEN® technology which allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
The matt:e ARD connection centres incorporate the unique 5 pole auto reset device that automatically restores power to the load once the fault has cleared in line with BS:7671.
The matt:e O-PEN® technology does not require earth rods or measuring electrodes to function correctly.
Product Features and benefits
- Built in O-PEN® Protection with auto reset isolator
- NO Earth electrodes required
- Facilitates compliance with regulation 722.4.4.1 (iii)
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- Phase loss protection
- For 6 x 32A single phase loads
- Complete with 6 x 32A double pole MCBs
- Mild steel IP4X enclosure
- Standard 1 Year parts warranty
- Designed and Built in the UK
- Matt:E type ARD-6-32-M
Specifications
- Colour – Black
- Dimensions (H x W x D) – 550 x 360x 120 mm
- Finish- Powder-coated
- Frequency- 50Hz
- Guarantee- 1 year
- IP rating- IP4X (indoor)
- Material- Mild steel
- Voltage rating- 400V, 3-phase
- Auto Reset Function- Yes
- Max Load – 63A
- Build Type- Pre-configured connection centre
- Terminal Capacity- 25mm²
Delivery information
This product is delivered directly from the manufacturer, and will be prepared to your specific order.
Dispatch is 4-7 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available.
Made to Order
This item is made to order, or shipped from overseas to order. Please expect a 3-5 working day lead time before dispatch.
Under our Returns policy, this items is not eligible for return, for either business customers or consumers.
-
-
