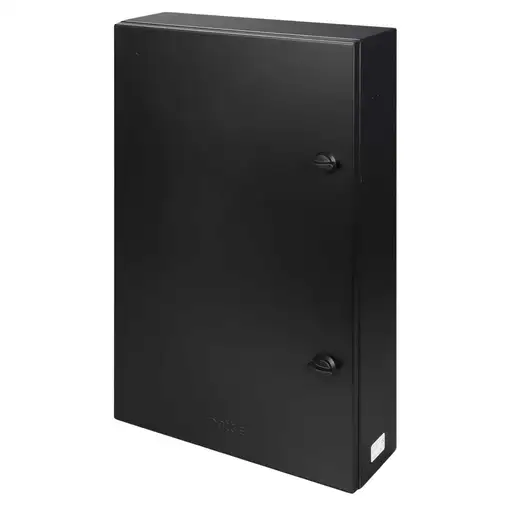

matt:e EVU-1-100-TP Connection centre with O-PEN® and manual reset 5 pole isolator suitable for loads up to 100A.
£826.80
{£992.16} Inc VAT
matt:e EVU-1-100-TP Connection centre with O-PEN® and manual reset 5 pole isolator suitable for loads up to 100A.

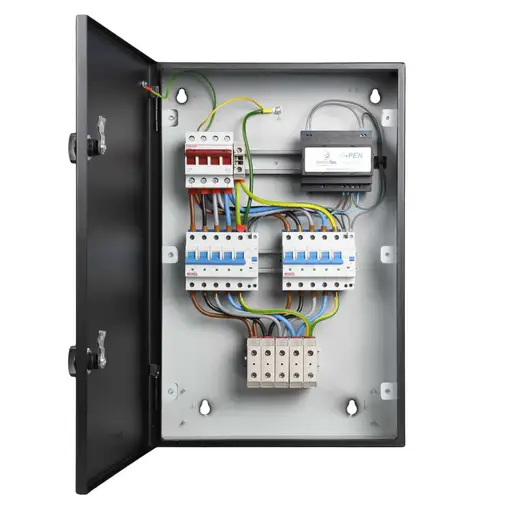

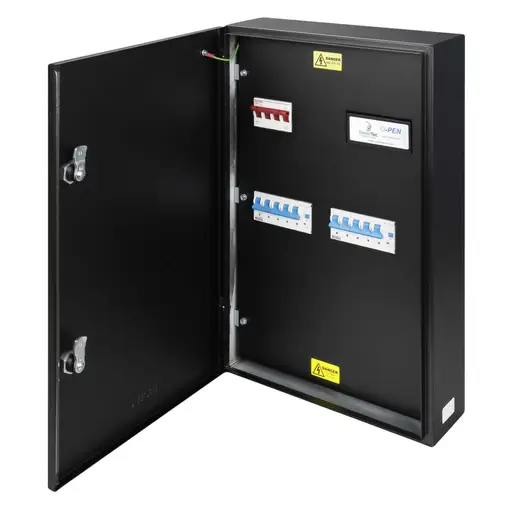

The EV-1-100-TP from matt:e is a simple, single dedicated connection unit with built-in O-PEN technology which allows for the connection of one 100A 3-phase load to an existing PME earthing facility.
The unit incorporates a 5-pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault. It is manually resettable in line with BS:7671.
The matt:e O-PEN technology does not require earth rods or measuring electrodes to function correctly.
Product Features and benefits
- Built-in matt:e O-PEN technology, which allows for the connection of 1 x 100A three phase load to the existing PME earthing facility
- Standard mild steel steel IP4X enclosure
- No earth electrodes required
- Phase loss protection
- 5 pole mains isolator with manually resettable shunt trip
- Standard 1 year parts warranty
- Simple wire in, wire out connection
- With 1 x connection for 100A 3 phase load
- Designed and built in the UK
Specifications
- Colour- Black
- Current Rating- 100A
- Depth- 140mm
- Dimensions- (H)550 mm x (W)360 mm x (D)140 mm
- Finish- Powder Coated
- Frequency- 50 Hz
- Guarantee- 1 Year
- Height- 550mm
- IP Rating- IP4X
- Material- Mild Steel
- Mounting- Wall
- Number of Chargepoints- 1
- Number of Ways- 1
- Ocpp Compliant- No
- Ozev Approval- No
- Packaging Types- Each
- Pen Fault Protection- Yes
- Unspsc V18- 39121110
- Voltage Rating- 415V
- Weight- 7kg
- Width- 300mm
Downloads
Delivery information
This product is delivered directly from the manufacturer, and will be prepared to your specific order.
Dispatch is 4-7 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available.
Made to Order
This item is made to order, or shipped from overseas to order. Please expect a 3-5 working day lead time before dispatch.
Under our Returns policy, this items is not eligible for return, for either business customers or consumers.
-
