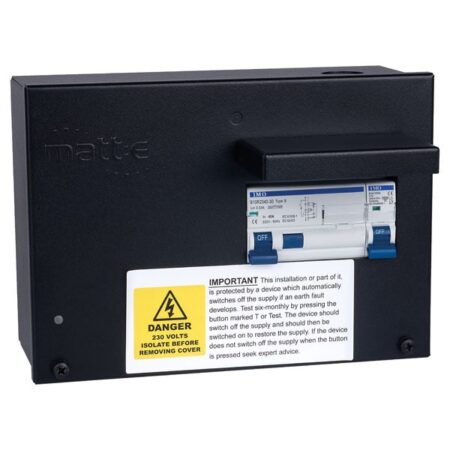

matt:e SP-EVCP-BC100 Single phase connection centre with 32A double pole Type B RCCB and 32A double pole MCB , load curtailment at 100A.
£285.00
{£342.00} Inc VAT
matt:e SP-EVCP-BC100 Single phase connection centre with 32A double pole Type B RCCB and 32A double pole MCB , load curtailment at 100A.
The SP-EVCP-B from matt:e is a simple single connection unit, that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility.
The unit incorporates a unique monitoring device which disconnects all poles including CPC in the event of a fault and a built in double-pole Type B RCD and 32A MCB.
The matt:e SP-EVCP-B does not require earth rods or measuring electrodes to function correctly.
Product Features and benefits
- Connection unit for 1x 32A single-phase EV charge point
- Built-in matt:e technology
- No Earth electrodes required
- BS:7671:2018 Amendment 1:2020 compliant
- Built-in Type B RCD and MCB
- Simple wire-in, wire-out connection
- Designed and built in the UK
- Matt:E type SP-EVCP-BC
Specifications
- Colour – Black
- Dimensions (H x W x D) – 169 x 232 x 111mm
- Finish – Powder-coated
- Frequency – 50Hz
- Guarantee – 3 years
- IP rating – IP2X (Indoor)
- Material – Mild steel
- Voltage rating – 230V, single-phase
- Build Type – Pre-configured connection centre
- Incoming Supply Rating – 32A
- Load Curtailment – Yes
- Protection Included – MCB & Type B RCD/RCCB
