matt:e IP-EVCP-R Single phase IP65 rated connection centre with 32A double pole Type A RCBO.
£198.66
{£238.39} Inc VAT

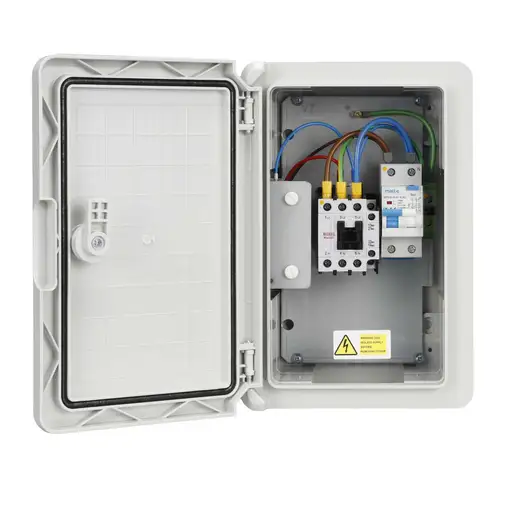

matt:e IP-EVCP-R Single phase IP65 rated connection centre with 32A double pole Type A RCBO.
The IP-EVCP-R from Matt:E is an IP65 rated, simple single connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation.
It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv).
Product Features and benefits
- Built in matt:e technology
- No earth electrodes required
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- Optional load management with hard wired CT
- Built in Type A RCBO
- Suitable for connection direct to tails
- Standard 3 year parts warranty
- Designed and built in the UK
Specifications
- Colour- Grey
- Current Rating – 32A
- Depth- 129mm
- Dimensions – (H)300 mm x (W)200 mm x (D)129 mm
- Guarantee – 3 Years
- Height – 300mm
- IP Rating – IP65
- Material – ABS-HB Flame Retardant Plastic
- Packaging Types- Each
- Pen Fault Protection- Yes
- Unspsc V18 – 39121110
- Unspsc V24- 39121110
- Voltage Rating- 230V
- Weight- 4.7kg
- Width- 200mm
