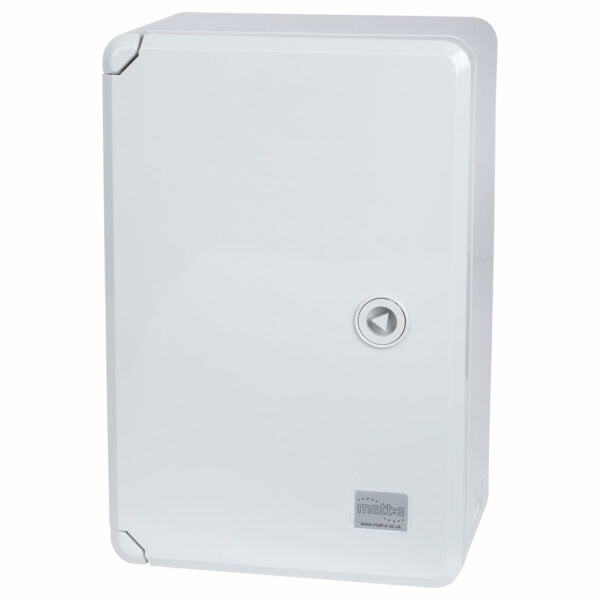

matt:e IP-EVCP-RC60 Single phase IP65 rated connection centre with 32A double pole Type A RCBO, load curtailment at 60A.
£212.66
{£255.19} Inc VAT
matt:e IP-EVCP-RC60 Single phase IP65 rated connection centre with 32A double pole Type A RCBO, load curtailment at 60A.Â
The IP-EVCP-RC from Matt:E is an IP65 rated, simple single connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation.
It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv) and has the optional additional functionality for load curtailment in line with Regulation 722.311.20, isolating the charge point from the supply once the house consumption rises above the pre-set limit (60A) and automatically restores the power to the charge point when the load falls back to a satisfactory level.
Product Features and benefits
- Built-in matt:e technology, which allows for the connection of 1 x 32A single phase charge point to the existing PME earthing facility
- Incorporates unique monitoring device which disconnects all poles including CPC in the event of a fault
- Automatic load curtailment isolating the charge point from the supply once the house consumption rises above the pre-set limit and automatically restores the power to the charge point when the load falls back within a satisfactory level.
- Load management with hard wired CT [factory set at 60A]
- BS:7671 18th Edition compliant
- CT with simple plug and play connection
- Standard 3 year parts warranty
- Built in 32A double pole type A RCBO
- Standard mild steel IP2X enclosure
- Designed and built in the UK
Â
Specifications
- Colour- Light grey
- Product Type- EV House Consumption Limiting 60A Connection Centre
- Incoming Supply Rating – 32A
- MCB Included – No
- RCBO/RCCB Included – Yes – Type A RCBO
- Max Terminal Entry – Input: 2.5mm² to 25mm², Output: 2.5mm² to 10mm²
- Warranty- 3 years
- Weight- Approx. 3kg
- Dimensions (H x W x D)- 300 x 200 x 129mm
- Voltage Rating- 230V, single phase
- Frequency- 50Hz
- Material- ABS-HB flame retardant plastic
- IP Rating- IP65 (outdoor)
- Number of ways- 1
- Build Type- Pre-configured connection centre
- Main Incoming Supply – Single-phase (230V)
- Load Curtailment- Yes
- Protection Included – Type A RCBO
