matt:e SP-R-SPD Single phase unit, DP Type A RCBO for loads up to 7.4kW with Type 2 SPD.
£217.38
{£260.86} Inc VAT

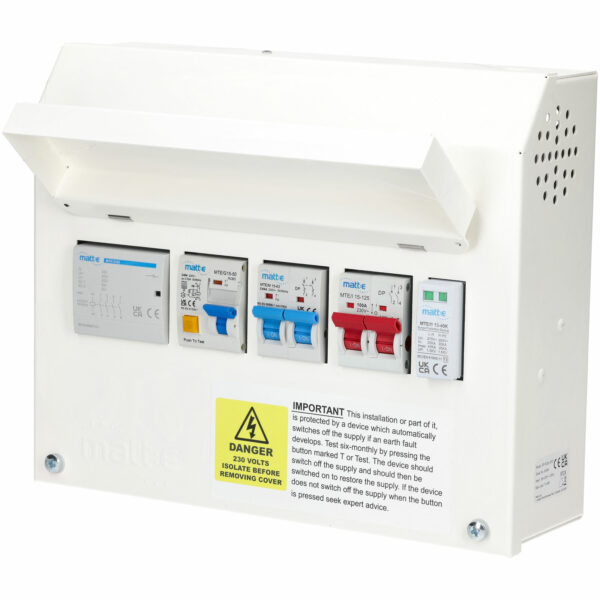

matt:e SP-R-SPD Single phase unit, DP Type A RCBO for loads up to 7.4kW with Type 2 SPD.
The matt:e SP-R-SPD is a single-phase connection unit, with Automatic Reset, PEN Fault Protection with Type A RCBO and built-in Type 2 SPD.
The single-phase protection device unit offers a simple, cost effective, compliant, solution for PEN fault protection. It allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1 (iv).
Product Features and benefits
- Built in PEN fault protection
- No Earth Electrodes required
- Facilitates compliance with regulation 722.411.4.1 (iv)
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- Over current protection
- Built-in Type 2 SPD and 40A Type A RCBO
- Automatic Reset
- Suitable for single phase loads up to 7.4kW
- Standard 1 Year parts warranty
- Designed and Built in the UK
- Matt:e type SP-R-SPD
Specifications
- Colour – White
- Dimensions (H x W x D) – 225 x 275 x 106mm
- Voltage rating – 230V, single phase
- Frequency – 50Hz
- Max. Power Rating – 7.4kW
- IP rating – IP2X (Indoor)
- Material – Mild steel
- Finish – Powder-coated
- Warranty – 1 Year
- Build Type – Pre-configured connection centre
- Load Curtailment – Yes
- SPD Included – Yes
- Main Incoming Supply – Single-phase (230V)
- Protection Included – PEN Fault, Auto-reset, Type A RCBO
Downloads
Delivery information
This product is delivered directly from the manufacturer, and will be prepared to your specific order.
Dispatch is 4-7 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available.
-
