WMEPME12/LB
The Pen-loss consumer unit is designed to provide a safe and compliant alternative to earth electrode/rod when installing a domestic electric vehicle charging point. This unit continually monitors the electrical system and in the event of a fault it automatically disconnects all poles including the earth conductor.
- 40A RCBO switch
- surge protection
- kWh meter
- Provides active load curtailment, set the maximum system current
- PME fault relays means earth rod not required
This board also comes with a load balancing monitoring relay: Modularization design 18mm width, sensitivity: 20A~110A adjustable, comply with IEC60947-5-1.
IP40 rated Available in 20A & 40A options BS7671 18th edition compliant Protects all types of EV charge points Built in type a RCBO providing overload & 30mA fault current protection Built in electrical contactor No earth electrode/rod required

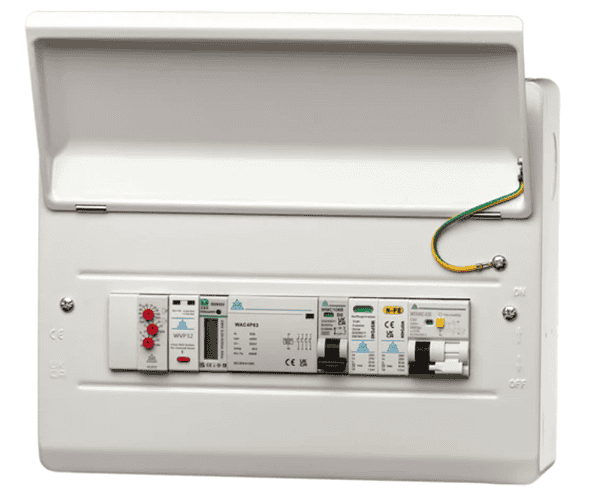

Please select your enclosure – metal (shown) or IP65 plastic (picture coming soon). If you require a 100A DP main switch (in place of RCBO) please state in order notes.
