WCED IP65 PME-Loss Units With Load Balancing. WPEPME12/LB
£116.00
{£139.20} Inc VAT
- Description
- Technical specification and wiring diagram
- Delivery information
- SOTA Electrical product video

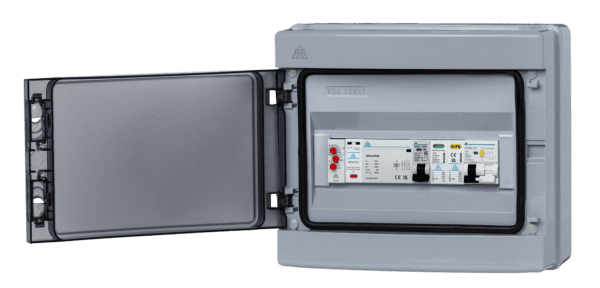

WCED IP65 PME-Loss Units With Load Balancing. WPEPME12/LB
This product contains a RCBO which is bi-directional
IP65 40A C curve + load balancing
Dimensions (W x H x D mm) – 295 x 255 x 140Â
The Pen-loss consumer unit is designed to provide a safe and compliant alternative to earth electrode/rod when installing a domestic electric vehicle charging point. This unit continually monitors the electrical system and in the event of a fault it automatically disconnects all poles including the earth conductor.
- 40A RCBO switch
- surge protection
- Provides active load curtailment, set the maximum system current
- PME fault relays means earth rod not required
This board also comes with a load balancing monitoring relay: Modularization design 18mm width, sensitivity: 20A~110A adjustable, comply with IEC60947-5-1.
Technical specification and wiring diagram
PME Load balancing with kWh meter (includes KWH meter)
