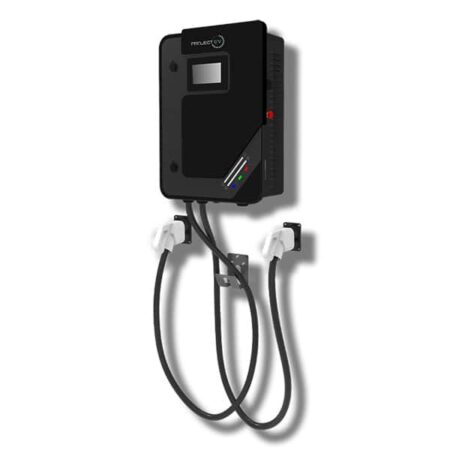

Project EV 40KW Wall Charger Dual Gun RFID [CCS / CCS] – 125A

£10,135.00 {£12,162.00} Inc VAT

Quantity:
Qty:

Project EV’s EVD-40D-P-CC is a high-power commercial Electric Vehicle Wall Charger with a convenient dual gun design, including two CCS connectors. This three-phase charger features RFID mode, giving you the freedom to control it easily with the swipe of a card. The EVD-40D-P-CC is also compatible with Project EV’s bespoke app, which makes it easy to manage fleets and costs, as well as load balancing for large-scale charging across multiple vehicles.

  • Methods of Control
    • Plug & Charge – simply plug car into Project EV device and charge begins, no additional software or applications required
    • RFID – control EV Charge Point with the swipe of an RFID card, one card supplied as standard (extra EV-RFID cards sold separately)
    • FREE Project EV App – allows users to choose and customise charging rates; prioritise off-peak charging to maximise savings (including via a solar charging mode); create charging records; and see and control all their data
    • Project EV Pro App – unique EV charging platform, provides users with ability to utilise public charging capabilities and manage/control multiple chargers – from which they can generate a fluid revenue stream
  • Input & Output
    • Input Amps – 63a Three Phase
    • Input voltage – 230~415V AC
    • Input frequency – 50/60HZ
    • DC outlet type – CCS x2
    • Output voltage – 250-750V DC
    • Max. output power – 40KW
    • Max. output current – 80A DC
    • Voltage accuracy – <±0.5%
    • Current accuracy – ≤±1%
    • Ripple coefficient – RMS: ±0.5%; Peak: ≤±1%
    • Meeting accuracy – 0.5%
    • Efficiency – ≥95.2%
    • Cable Length – 5m
  • Protection
    • Over voltage protection
    • Under voltage protection
    • Over load protection
    • Short circuit protection
    • Earth leakage protection
    • Over-temp protection
    • Surge protection
  • Function & Accessory
    • Display – 7 inch screen
    • Ethernet/WiFi/4G – Yes/Yes/Opt.
    • RCBO – Type A +6mA DC fault current protection (Equivalent to Type B)
    • LED Indicator light
    • Emergency stop button
    • Intelligent power adjustment – Opt
    • RFID
  • Working Environment
    • Protection degree – IP54
    • Environment temperature – -20ºC~+50ºC
    • Relative humidity – 5-95% non-condensing
    • Cooling – Forced air cooling
    • Standby power consumption -<25W
    • Noise emission – ≤65db
    • IK Rating – IK10
  • Mechanical
    • Dimension (W/H/D) – 540/760/271mm
    • Weight – 94KG
  • Mounting & Accessories
    • Wall-mounting – Standard

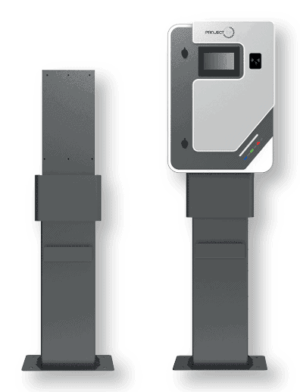

    • Floor-pole – EV-FLRSTAND-40D (optional/sold separately)
    • Ground-mounting – EV-GM40KW-2 (optional/sold separately)
    • Dynamic Load Management – Opt. EV-TPM-200A
  • Certification
    • CE
    • SA8000 Accredited
    • OZEV Approved

Datasheet

EVD-20S-P-Datasheet-V1.4-C

Delivery information

This product is delivered directly from the manufacturer, and requires preparation, building or commissioning prior to dispatch.

Dispatch is 1-3 days from the date of order, and delivery is a 24 hour service.

Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available
