The EVA-07D-SE-RFID-Wis ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase.
Project EV EVA-07D-SE-RFID-W Description

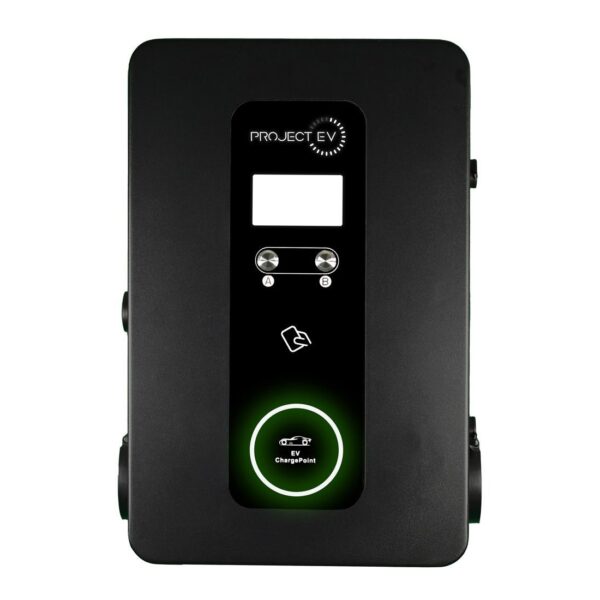

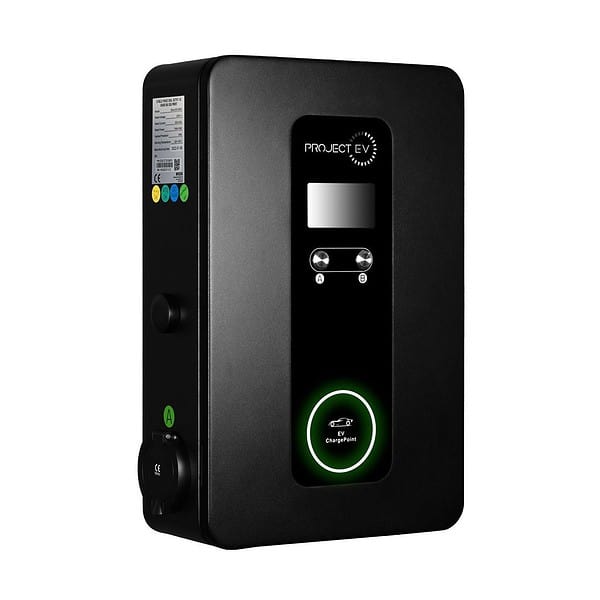

The EVA-07D-SE-RFID-Wis a single-phase dual AC charging unit, packed with features, such as a no earth spike required installation. The dual gun charger is perfect for both domestic and commercial use with a market-leading five-year warranty.
This charger also has time shifting capabilities giving you the opportunity to save £100’s per year, a cable lock system for added security, free mobile monitoring app, and a dynamic load balancing system.
The EVA-07D-SE-RFID-W is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional ground mounts (EV-GMEVA-D-2) & optional floor stands (EV-SEW-FLRSTAND) are available to purchase.
Plug & Charge – Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.
RFID – RFID Mode Charging is an easy simple way for uses to control their EV Charge Point with a swipe of a card. One RFID card is supplied as standard, however extra cards can be supplied for those interested in public charging.
Project EV App – The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.
Project EV Pro App – The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers – from which you can generate a fluid revenue stream.
Project EV EVA-07D-SE-W Features
- Type 2 x2 Sockets
- Dual Gun Pro Earth
- Cable Lock System
- RFID Control
- Mid Metering
- 5 Year Warranty
Input & Output
Input Amps: 63a Single Phase
Input voltage: 230V AC
Input frequency: 50HZ
Output voltage: 230V AC
Max. output power: 7kW per socket
Max. output current: 32A per socket
Charging interface type: IEC 62196-2, Type 2
Function & Accessory
LCD: Yes
Ethernet/WIFI/4G: Yes/Yes/Opt.
Outlet Type: Type 2 (socket)
Number of outlets: 2
RCBO: Type A +6mA DC fault current protection (Equivalent to Type B)
LED Indicator Light: Yes
Mid Metering: Yes
Emergency stop button: Yes
RFID: Yes
Dynamic Load Management: Modbus Meter Only (EV-SPM)
Working Environment
Protection degree: IP65
Envirovent temperature: -25ºC~+50ºC
Relative humidity: 0-95% non-condensing
Cooling: Natural air cooling
Standby power consumption: <8W
IK Rating: IK10
Mechanical
Dimension (W/H/D): 320/562/176mm
Weight: 16KG
Mounting & Accessories
Wall mounting: Standard
Floor-pole: Opt. EV-SEW-FLRSTAND
Ground-Mounting: Opt.EV-GMEVA-D2
Certification
CE: Yes
SA8000 Accredited: Yes
OZEV Approved: Yes
UKCA: Yes
