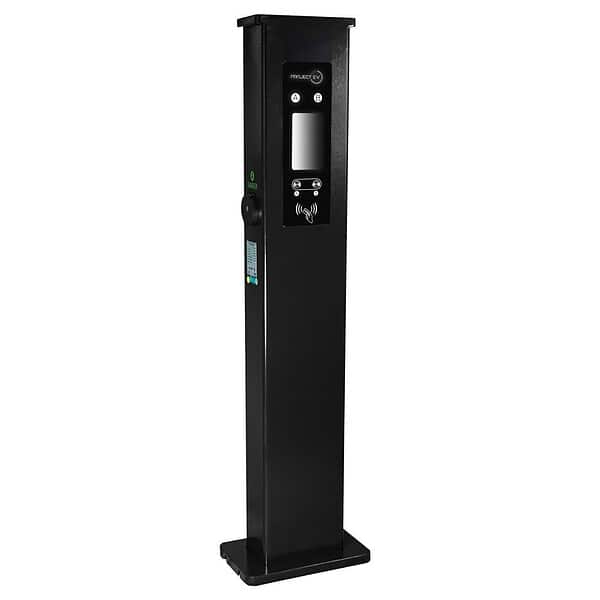

Project EV 22kw Pro Earth Floor Charger Dual Gun RFID (63a 3Phase Supply, 32a per Phase). EVA-22D-SE-RFID

Project EV 22kw Pro Earth Floor Charger Dual Gun RFID (63a 3Phase Supply, 32a per Phase). EVA-22D-SE-RFID

Project EV EVA-22D-SE-RFID is an untethered three phase 22kW dual socketed EV charger that is ideal for domestic and small scale commercial use.

This floor mounted EV charger benefits from 2x Type 2 sockets and comes with one RFID card (with additional cards available for purchase) which allows users to start and stop charging with the swipe of a card. Other modes of charging include plug-and-charge – where users simply connect their vehicle to the charger and charging starts automatically – and via the Project EV App which allows users to choose and customise charging schedules, prioritise off-peak charging and view charging records.

The dual EV charger features a LCD Screen and LED status indicator, built in earth spike so no additional earthing is required, on-board RCBO protection, dynamic load balancing, a secure cable lock system, IP65 protection against dust and water and a market leading 5 year warranty.

With the addition of the Project EV 4G kit and SIM card the charger can connect to the internet via 4G – ideal if there is no access to WiFi or an ethernet port

EVA-22D-SE-RFID is also fully compatible with Project EVs Pro App. Differing from Project EV’s individual user app, the Pro app has been designed specifically for business owners. Offering a suite of advanced features that empower you to maximize the potential of your charging infrastructure, the Pro app benefits from a user-friendly interface and comprehensive tools for efficient management and control of multiple chargers, ensuring smooth operation and enhanced revenue generation. From monitoring charging activity to assigning RFID charging tags and streamlining expenses, the Pro App is the ultimate solution for business owners looking to optimize their EV charging operations.

Optional ground mounts are also available to purchase to protect the charge points from bumps and scrapes.

Key Features of Project EV EVA-22D-SE-RFID Untethered 22kW Dual EV Charger Include:

• Dual Socketed EV Charger Ideal for Domestic and Small Scale Commercial Use
• 2x Type 2 Sockets
• Untethered
• Three Phase
• Comes with 1 RFID Card
• Control Via RFID, Plug-and Charge or Project EV App
• App Allows Customising of Charging Schedules, Prioritising of Off-Peak Charging and Charging Record Access
• LED Status Indicator
• Built-In Earth Spike
• On-Board RCBO
• Dynamic Load Balancing
• Cable Lock System
• IP65 Rated
• Input Amps: 63A
• Input Voltage: 415V
• Max Power Output: 22kW Per Socket
• Emergency Stop Button
• Over/Under Voltage Protection
• Overload Protection
• Short Circuit Protection
• Earth Leakage Protection
• Over-Temp Protection
• Surge Protection
• PEN Fault Protection
• Dimensions (hxwxd): 1635mm x 320mm x 175mm
• Weight: 30kg
• 5 Year Warranty
