Seaward PV1525
£2,139.99
{£2,567.99} Inc VAT
Product Overview
- The PV:1525 Series is designed for electrical safety testing and performance measurement in PV systems up to 1500VDC and 25A, suitable for residential and commercial installations.
- Key functionalities include Ground Continuity, Insulation Resistance, Open Circuit Voltage, Short Circuit Current, and IV Curve Tracing (PV:1525-IV model).
- The user-friendly interface enhances ease of use, while Bluetooth capabilities allow for data transfer to a mobile app for efficient data management and updates.
Technical Specifications
- Open Circuit Voltage: 0.0VDC – 1500VDC; Short Circuit Current: 0.00ADC – 25.00ADC; Insulation Resistance: 0.05MΩ – 300MΩ.

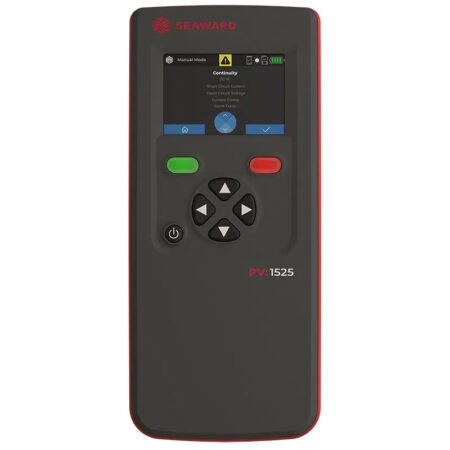

- The device features an intuitive color display, illuminated function buttons, and internal memory for storing results.
- Operating power ranges from 0.00kW to 40kW, with a weight of 1kg and dimensions of 265 x 115 x 78 mm.
Included Accessories
- Each kit includes the PV:1525 or PV:1525-IV instrument, a carry case, test probes, MC4 test leads, a LiPo battery pack, a battery charger, and an irradiance meter.
Product video
Detailed description
The Seaward PV1525 is designed for installers and O&M engineers to allow electrical safety testing and performance measures in PV systems up to 1500VDC and 25A, ideal for residential and commercial level installations.
With a new innovative user interface, the PV1525 series retains the ease of use from the previous generation while adding additional features fit for a modern test instrument. Users can tag test results with installation-specific details to simplify data management and record-keeping. With Bluetooth capabilities, test results can be easily transferred to a mobile app for review and further sync with software, ensuring your device is always up to date with the latest features.
Performs Ground Continuity, Insulation Resistance, Open Circuit Voltage, and Short Circuit Current.
Designed for modern electrical professionals, the PV1525 Series introduces an innovative user-friendly interface, ensuring seamless operation while retaining the intuitive functionality of previous models. This next-generation tester comes packed with advanced features, offering precise measurements, efficient data management, and connectivity enhancements suited to today’s demanding testing environments.
Key Features & Benefits:
- Enhanced Interface for Simple Operation
The refined display and user-friendly navigation make testing easier than ever. Users can focus on results rather than complex setup procedures. - Powerful Testing Range
The PV1525 handles high-voltage testing with an open circuit voltage range up to 1500V DC and a short circuit current capacity of 25A, meeting the demands of modern high-performance PV systems. - Real-Time Data Tagging
Users can instantly attach specific installation details to test results, streamlining reporting, ensuring compliance, and simplifying ongoing maintenance tracking. - Effortless Bluetooth Data Transfer
Users can quickly sync test results to a mobile app for real-time viewing, sharing, or cloud storage, ensuring records remain accessible whenever needed. - Seamless Software Integration
Stay up to date with automatic firmware updates and integration into asset management platforms, enhancing overall workflow efficiency. - Built-In Safety Features
High-visibility voltage warnings (≥30V AC/DC) enhance operator safety, while high-resolution insulation resistance testing ensures compliance with industry standards.
