- Excellent industrial design brings pleasant user experience.
- Connect to any backend based on OCPP 1.6J protocol.
- Equipped with Bluetooth for easy commissioning.
- Could connect to Star Charge Peak Controller (optional accessories) via Ethernet to realize local dynamic load management.
- Built-in Type A RCD + 6mA DC
- PEN fault protection
- OZEV approved
Star Charge Artemis 7.4kW EV Charge point
£295.00 {£354.00} Inc VAT
Artemis product video
Technical specification
| General Information | |
| Charging Mode | Mode 3 (IEC 61851-1) |
| Input/Output Power&Current Rating | 7kW/32A max. |
| Input/Output Voltage Rating | 176-264Vac, single phase, 45-65Hz, L+N+PE |
| Grid Type | TN-S, TN-C-S, TT, IT |
| Charging Interface | IEC 62196-2 Type 2 tethered plug (Case C) |
| Metering | Onboard metering chip, Accuracy: 1% |
| Internal RCD | Type A RCD + 6mA DC |
| Protection | Overcurrent, Overvoltage, Undervoltage, Residual current, Short circuit, Over temperature, Grounding fault, Integrated surge protection, PEN fault detection |
| User Interface | |
| Display & Support Languages | Digital screen(optional) |
| Status Indication | LED indicator |
| Bluetooth | 5.0 |
| Button & Switch | No emergency button, with rotary switch inside(used for setting output current limitation) |
| User Authentication | Free Charge + RFID card + APP |
| RFID Reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 |
| Communication | |
| Network Interface | 4G, Wi-Fi, Bluetooth, Ethernet, RS485 |
| Protocol (EVSE&Backend) | OCPP 1.6J |
| Protocol (EVSE&EV) | Control pilot |
| Environmental | |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% no condensation |
| Altitude | ≤3000m above sea level |
| Mechanical | |
| IP Rating | IP55 |
| IK Rating | IK10 |
| Cooling | Natural cooling |
| Charging Cable Length | 5m or 7m(optional) |

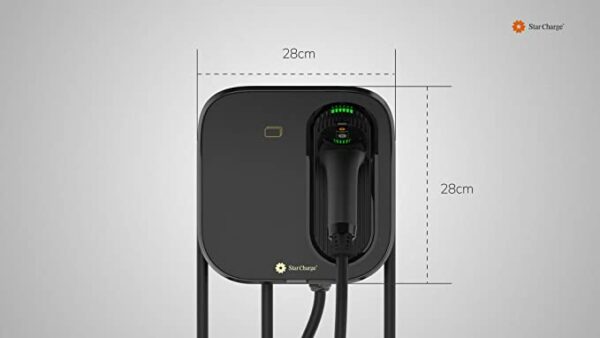

| Dimensions (WxHxD) | 280*280*148 mm |
| Weight | Approx. 3.75kg |
| Installation | Wall mounting, Pole mounting (Pole is optional) |
| Certification and standards | |
| Standards and compliance | BS EN 61851-1: 2019 |
| Certification | UKCA |
