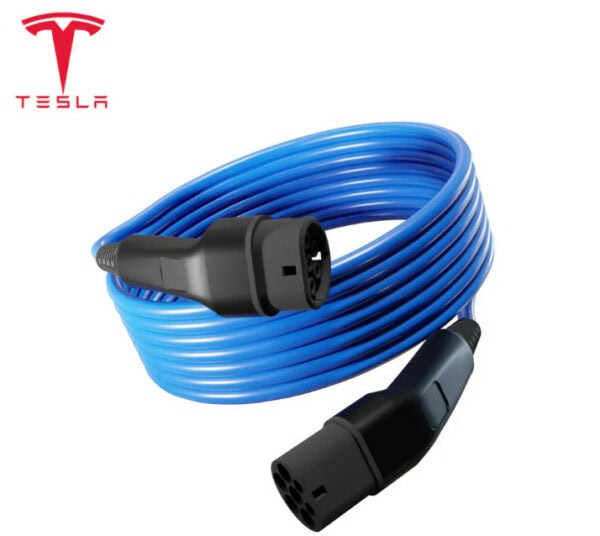

Tesla Charging Cable 7kW 5m – Charge Port Open/ Close Button

Technical

GENERAL

• Cable Type: Type 2 Standard Charging Cable (IEC62196 / Mennekes)
• Power Rating: EVS Cables 7.4kW or 22kW. Portable Charger 2.3kW.
• Length: Available in multiple lengths from 2m, 3.5m, 5m, 7.5m, 10m, 12.5m, 15m. 20m, 25m, 30m, 40m and 50m.
• Colours: Black, Blue Yellow
• Certifications: IEC62196, IEC IEC 61851-1, CE compliant, UKCA compliant, RoHs & REACh compliant, EN 50620 (CEBEC 7, Annex F, Annex D), EN 50289-4-17 (ISO 4892-1 / ISO 4892-2), EN 50565-1, EN 60228 class 5, EN 60332-1-2 2004/A1: 2015, EN 50525-1:2011 (Annex B).

FLEX

• System voltage: 230V/400V
• Test voltage: 3500 VAC
• Sheath: hard wearing TMPU/EVM-1(Z5) moulded Thermoplastic Polyurethane, compliant with EN 50620 and Halogen Free to minimise environmental impact.
• Cores: 3G6, Flexible bare annealed copper cores. Compliant with EN 60228 class 5.
  Pilot Core: 0.75mm²

PLUGS

• Case: Ultra durable, ABS and PA6GF30 glass reinforced Nylon
• Contacts: Copper Hyperboloid Contacts, with 5um Silver Coating
• IP Rating: IP54 when mated
• Plug Dust Covers: Included
