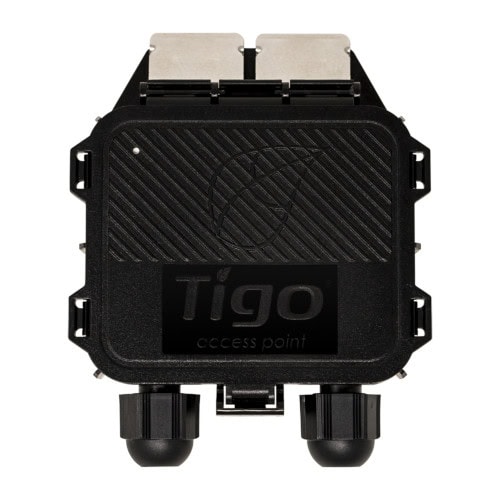

Tigo Access Point – Wireless Communication Unit. TG-10500

Tigo Access Point – Wireless Communication Unit. TG-10500

The Tigo Access Point (TAP) improves the data management of your solar system through seamless communication with Tigo Smart modules and retrofit devices. TAP significantly improves the level of security at module level deactivation. Combined with a Cloud Connect Advanced (CCA), the TAP offers unsurpassed insights into your solar system.

Key Features:

• Communicate directly with up to 300 TS4 units
• Use the Tigo SMART App on a mobile device for quick start-up
• Provide grid status to TS4 MLPE for rapid shutdown UL compliance
• Easy installation on the module frame without tools
• Wireless mesh communication

Technical Data:

• Input Voltage: 5VDC – 25VDC
• Power Consumption: 0.5W average, 1W peak
• Recommended cable type: RS485, 18-22AWG
• Up to 300 TS4 units
• Environmental rating: IP68, Type 4R
• Dimensions: 126.2mm x 130.0mm x 26.8mm (with bracket)
• Weight (CCA only): 227g
• Operating Temperature Range: -30°C to +70°C
• Maximum distance from TAP to closest TS4: 10m
• Maximum distance from TAP to farthest TS4: 35m (115ft)
• Each TAP supports up to 300 TS4 units
