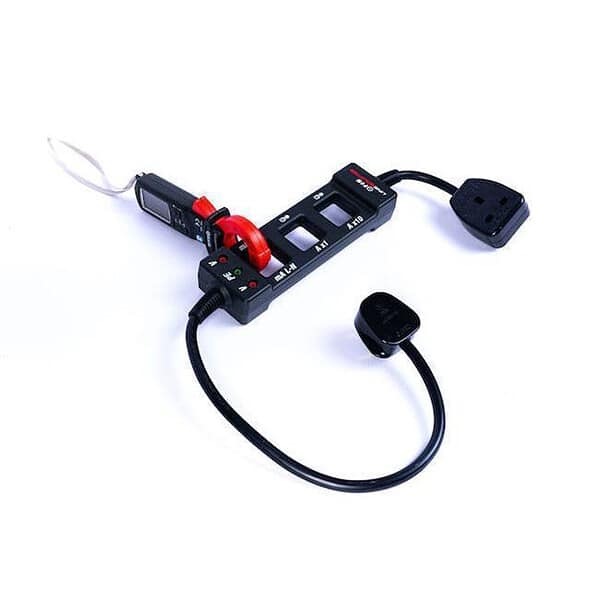

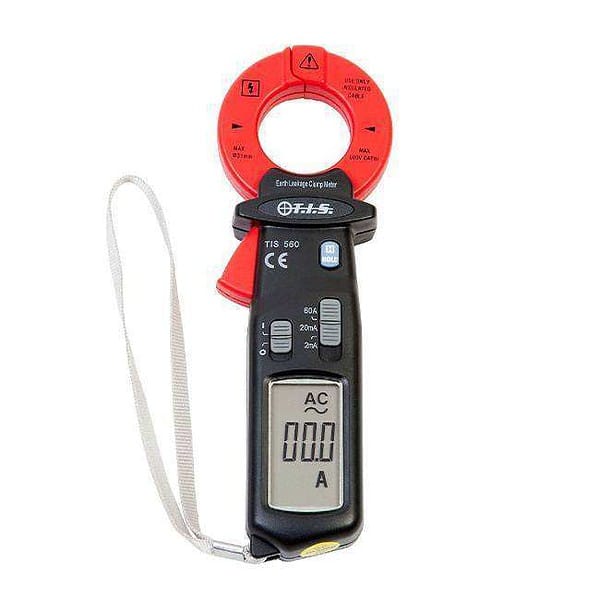

“Pocket size” Earth Leakage Clamp Meter which will measure earth leakage in mamps on rcd protected circuits in line with the 17th edition regulations. “314 division of installation”, page 39, chapter 31 314.1 – every installation should be divided into circuits, as necessary to: (iv) reduce the possibility of unwanted tripping of rcd’s due to excessive protective conductor currents, leakage current or electical current resulting from an installation fault produced by equipment in normal operation. The TIS 560 also can read ac current up to 60 amp.
The TIS 560 also conforms to the New 18th Edition regulation 531.2.2
Basic Functions Range Accuracy
AC Current
• 2mA, Resolution 0.001mA ±(2.0%+5d)
• 20mA, Resoultion 0.01mA ±(2.0%+5d)
• 60A ±(2.0%+5d)
• Frequency 50 to 60Hz >50A ±(3%+5d)
• Max Permitted Input 120% for full range for 60 seconds
• Conforms to the 18th Edition regulation 531.2.2
Special Functions
• Earth Leakage 0.001mA
• AC Current
• Frequency 50/60Hz
• Data Hold
• Low Battery Warning
• LCD Display 1999 Count
• Compact Design
GENERAL CHARACTERISTICS
Power 2 x AAA Batteries
Weight 150g
Size 176mm x 59mm x 28mm
Jaw Opening 31mm

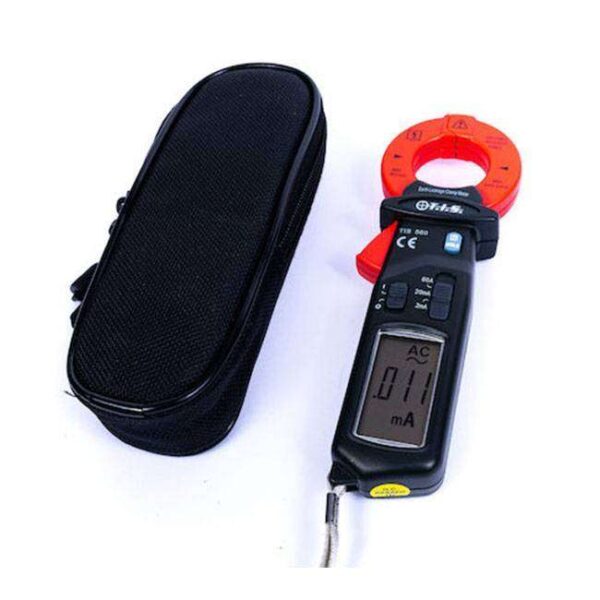

Standard Accessories
2 x AAA Batteries, Wrist Strap and Soft Padded Case
EMC & LVD
EN: 61010-1
EN: 61010-02-031
