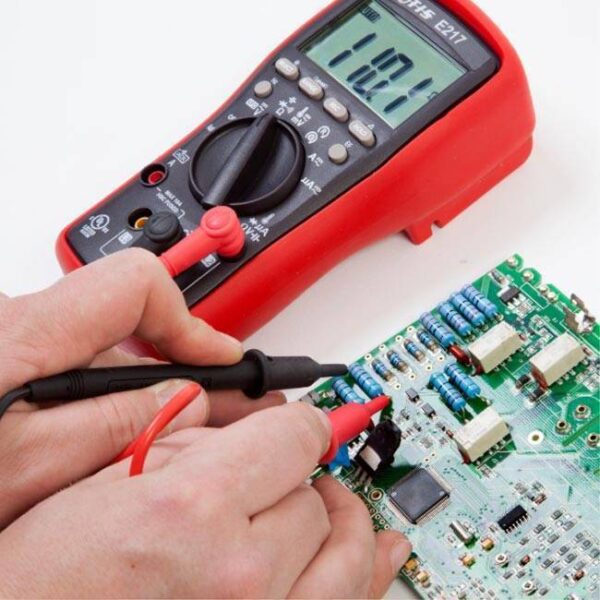

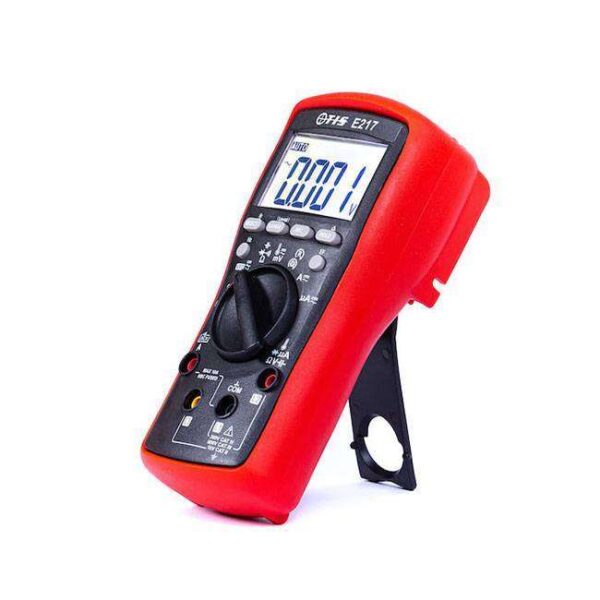

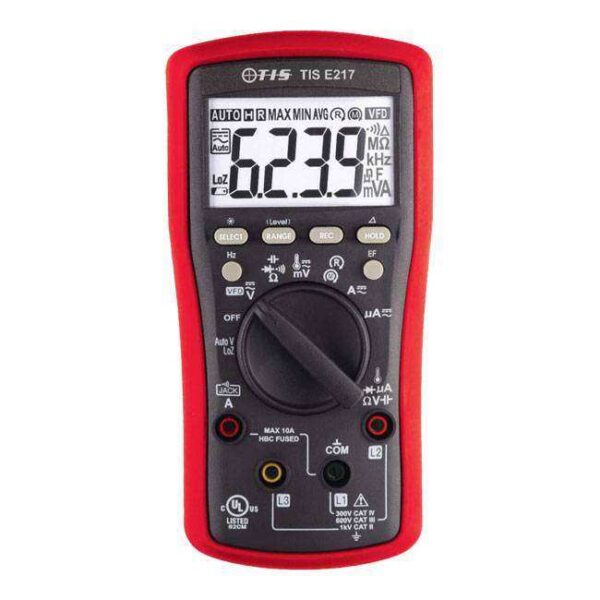

The Elite TIS E217 TRMS electrical multimeter features TRMS AC conversion, VFD V&Hz fundamental readings of most variable frequency drives. The display is paper white backlit and the TIS E217 also has automatic DC & AC 1000V selection with low initial impedence to drain ghost voltages.
- 3 – 5/6 Digits, 6000 Counts, Large easy to read LCD Display
- Fast Measurements, 5/Sec; Fully Auto-Ranging
- True RMS AC Conversion & Intelligent Auto Power Off
- Data Hold, Diode Tester & Relative Zero Mode
- Records Max/Min Readings & Calculates Average Readings over time
- VFD V & Hz Fundamental Readings of most Variable-Frequency-Drives
- Paper white Back-Lit LCD Display
- BeepLitTM Continuity. Features Audible Beep & Visible Backlight Effects
- Non-Contact EF-Detection (NCV) with Hi/Lo Selectable Sensitivities
- Probe-Contact EF-Detection for more precise indication of Live
- 3φ-Rotation-R (Regular-sensitivity mode) for Supply Systems (Probe-contact)
- 3φ-Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)
- AutoV LoZ Feature. Automatic DC & AC 1000V Selection with Low Initial Impedance to Drain Ghost Voltages
- DC/AC V Ranges: 600.0mV to 1000V
- Ohms Ranges: 600.0Ω to 60.00MΩ
- Cx Ranges 2000nF to 10.00mF for Start & Run Motor Capacitors
- Line Level Frequency Ranges 99.99Hz to 50.00kHz
- DC/AC A Ranges 6.000A to 10.00A (20A for 30s / 5 mins cool down)
- DC/AC μA Ranges 200.0μA to 2000μA
- Type-K Temperature Readings -400C to 4000C or -400F to 7520F
- Beep-JackTM Input Warning against improper A-Terminal Plug In
- Rugged Fire Retarded Housing
- Replaceable Protective Holster with Probe-Holders & Tilt-Stand
- Batteries and Fuses Access Door with Optional Magnetic Hanger
- Transient Protection up to 6kV 1.2/50μs Lightning Surge
- LVD: EN61010-1/-2-030/-2-033, CAT-II 1kV, CAT-III 600V & CAT-IV 300V
- EMC: EN61326-1: 2013
- EAN Barcode 5060508210641
