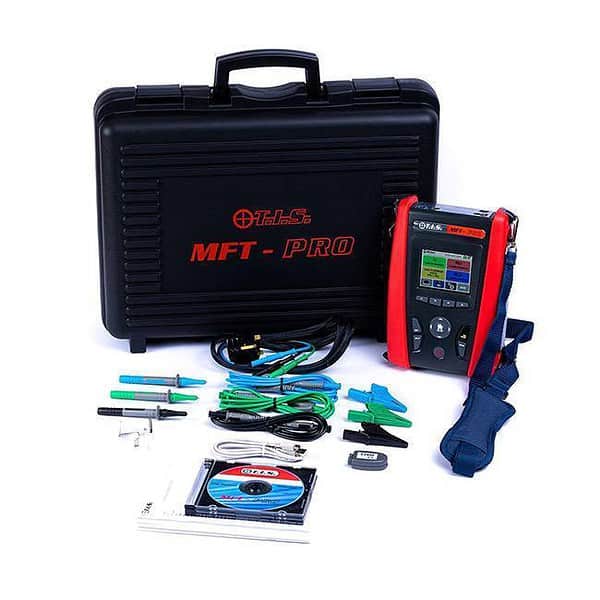

TIS MFTPRO TRMS PROFESSIONAL MULTIFUNCTION WITH EVSE TESTING CAPABILITIES

£805.00 {£966.00} Inc VAT

Quantity:
Qty:
Categories: Test EquipmentTags: Test equipment, TISSKU: TIS MFTPRO

TIS MFT-PRO is a professional multifunction installation tester with power quality analysis & Wi-Fi and EVSE Testing Capabilities.

The TIS-MFTPRO is a Multi Award Winning professional multifunction installation tester with power quality analysis & Wi-Fi it also NOW has the capabilities to fully test Evse Charging Stations ideally when using in conjuction with the TIS EV-TEST100.

It will carry out all the expected functions of a multifunction tester, including Loop, Rcd & Insulation tests & much much more. It’s also includes the facility to test Phase to Phase on Loop, A large TFT Colour LCD display, TRMS for accurate measurements on noisy and harmonically distorted circuits. The TIS MFT-PRO also features an accurate Pro-Lock no trip loop test, power quality analysis & harmonics upto the 25th.

• NEW EVSE Testing Capabilities.

• NEW RDC-DD 6mA Test for EVSE to IEC 62955

• Full Auto-Sequence using TIS EV-TEST100.

• NEW 6mA DC RCD & Ramp Test for EVSE Charging Points, PLUS BRAND NEW RDC-DD 6mA Test to IEC 62955

• NEW Auto Sequence performs Loop, RCD & both cycles of the Ramp Test from pressing the test button once.

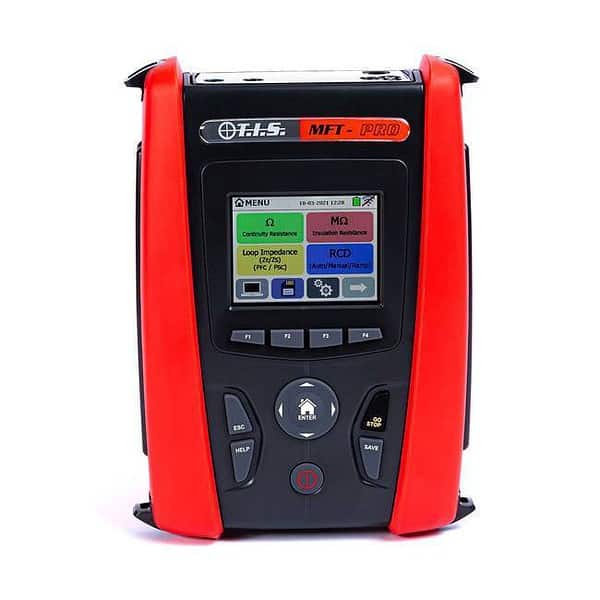

• TFT Large Colour LCD Display 320×240 pixels

• Phase to Phase Loop Testing



Full specification

• TRMS for accurate measurement on noisy & distorted circuits

• Resistive touch screen, works even with gloves on!

• Full help schematic display

• Power quality analysis of single-phase or balanced 3 phase systems

• Built in fuse characteristic table with a tick (OK) or cross (FAIL) display

• Measurement of continuity >200mA

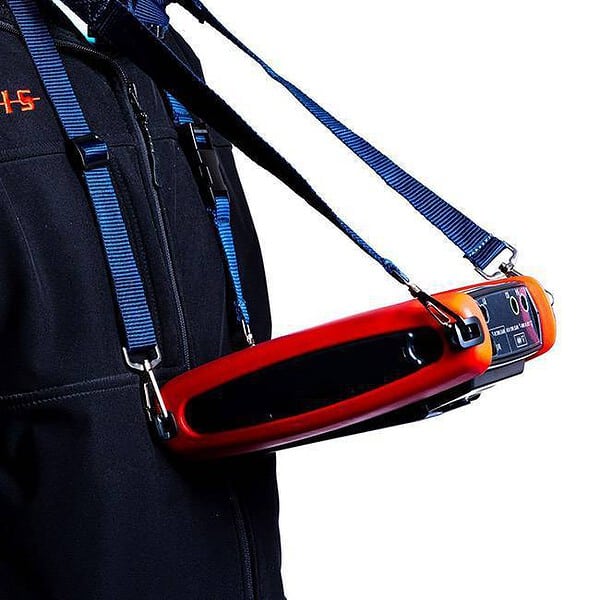

• Supplied with neck strap & harness for hands free use

• Displays both PFC & PSC simultaneously on no trip test

• Displays both L-N, L-PE simultaneously on no trip test

• Compliant with BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition

• Accurate PRO-Lock no trip loop test

• Phase Sequence Measurement

• Accurate & reliable no trip loop testing

• Line-Loop impedance, phase-phase, phase-neutral, phase p-e

• Insulation test at 50, 100, 250, 500 and 1000V

• RCD Testing up to 1A or 10A with an optional adapter

• Automatic RCD test, 0°, 180°, x1, x½, x5, (One trip to the board)

• Ramp test in one visit

• Tripping time of general, selective and delayed RCD’s, A, AC & B

• Measurement of voltage drop on lines

• Measurement of voltage, current, active, reactive & apperent power Voltage & Harmonics up to the 25th

• With optional adapters will measure: leakage current measurements, current clamps, USB optical cable, RCD up to 10A

• Memory to 999 locations, 3 level markers

• PC interface integrated WiFi communication

• Software included

GENERAL CHARACTERISTICS
Power Supply: 6 x 2000mA Rechargeable batteries & charger
Battery Life >550 tests (alkaline)
Display: Resistive touch screen 320×240 pxl
Memory: 999 locations, 3 levels of markers
PC Interface: Optical / USB & wi-fi
Safety: IEC/EN61010-1, double insulation
Operating Humidity: <80% RH
Storage Temperature: -10° – 60°
CAT IV 300V, Max 415V between inputs
Pollution Level: 2
Reference standard: IEC/EN61557-1-2-3-4-5-6-7
Size (LxWxH) 225x165x75mm
Weight: 1.2Kg
Accessories: Neck strap & harness

3 Year warranty providing the instrument is serviced by TIS
