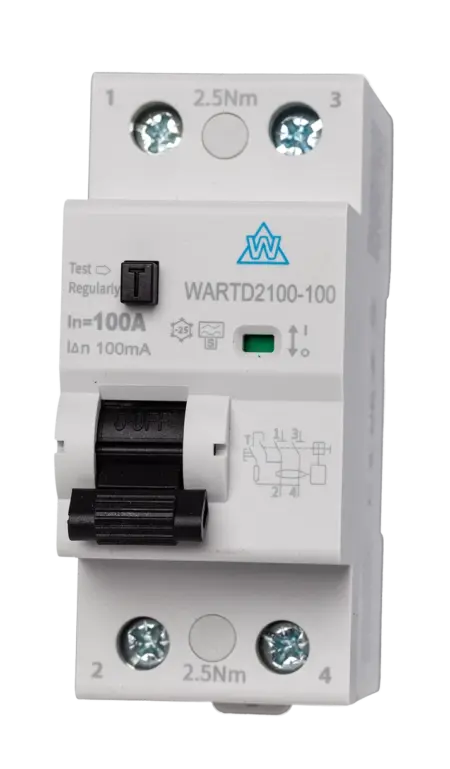

WCED 2 Pole A-Type Time Delay RCD. WARTD2**-100

WCED 2 Pole A-Type Time Delay RCD. WARTD2**-100
This product contains a RCBO which is bi-directional

WARTD263-100 , WARTD280-100 , WARTD2100-100

The WCED brand Time Delayed RCD is used typically when two RCDs are installed in series, and the time delayed RCD enables
discrimination, i.e. in the event of a fault only the ‘upstream’ RCD should trip

• Residual current characteristics: A
• Rated operational voltage: 230/400V
• 50Hz Earth-leakage sensitivity: 30,100, 300mA
• Rated conditional short-circuit current: 6kA
• Mechanical durability: 4000 cycles
• Electrical durability: 2000 cycles
• IP degree of protection: IP20 conforming to:
• BS EN 60529 Ambient temperature: -25 ° C — +40 ° C
• Complies with BS EN 61008-1
• Recommended Torque: 2.5Nm
