WCED 6 Way TPN Distribution Board c/w 4P 125A Main Switch + 4P SDP. WTPN06-125

WCED 6 Way TPN Distribution Board c/w 4P 125A Main Switch + 4P SDP. WTPN06-125

The WTPN range of 3 phase distribution board ideal for commercial, industrial, and where required domestic installations.  All enclosures are supplied with a 125A 4 pole main switch as standard and Type 2 Surge protection Device (SPD). Robust 1.2mm steel enclosure to ensure a long life in the harshest of environments.  WTPN boards will accept our 6kA devices without any modification or additional hardware.

• Rated Current 125A
• Twin Screw Main Switch for secure connection
• Type 2 Surge protection
• Perfect curved design
• Door locking kit with key for additional security
• Fully enclosed busbar system
• Neutral & Earth Terminal are fitted both sides
• Fully shrouded neutral terminals
• Removable gland plate for ease of cable entry
• Keyhole fixing for ease of wall mounting
• Complies with BS EN61439-3

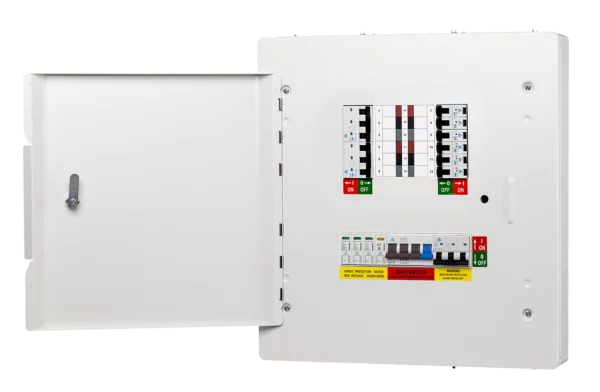

Images are generic to the range – more to follow
