WCED 4P 63A 4NO 24V Modular Contactor. WAC4P63/24

 4P 63A 4NO 24V

Dimensions (mm) 54 x 84 x 68

WCED brand modular contactors are designed for use in modular panels and enclosures.
Electric ratings: up to 20A, 25A,40A,63A, 100A, 125A.
Compact modular design.
No noise during operation.
Suitable for housing within a consumer unit or modular enclosure.
Rated operational voltage: 230/400V 50Hz
IP degree of protection: IP20 conforming to BS EN 60529
Utilisation category: AC-7a and AC-1 according to BS EN 60947-4-1
Ambient temperature: -25 °C — +40 ° C
Recommended Torque: 2.0Nm
Complies with BS EN 61095

35mm Din rail mounting

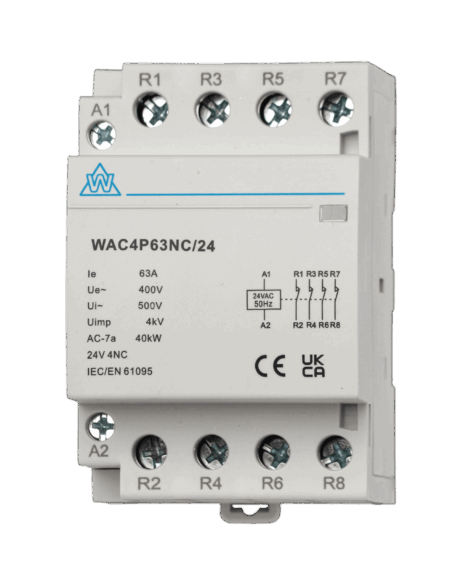

Image is generic to the range
