Zaptec Column Premium works with the Zaptec Pro charging station.
Available in grey or black
Zaptec Column Premium
£795.00 {£954.00} Inc VAT
Technical details

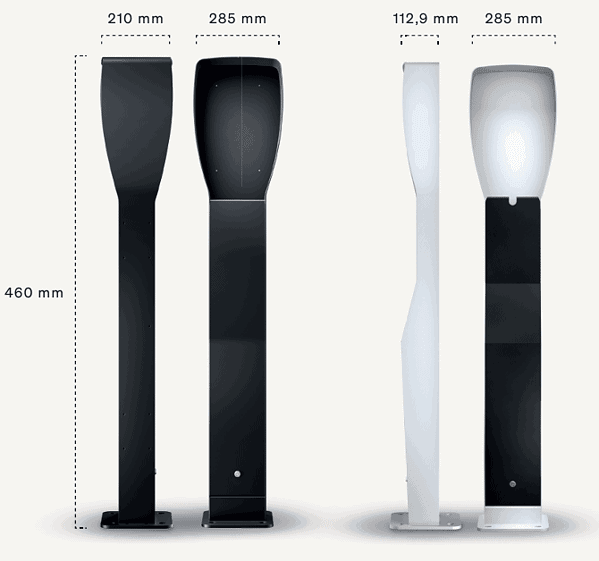

Size Single Zaptec Column Premium:
H: 1.460mm x B: 285mm
D: 112,9mm
Size Twin Zaptec Column Premium:
H: 1.460mm x B: 285mm
D: 210mm
Colour
Grey or Black
Material
Aluminium
Surface treatment
Powder coated
Protection class
Class I must be connected to PE
Degree of protection
IK10
Cable entry
Ø170x70mm in the bottom
Attach to ground
CC160mm, Ø22mm hole
Connection box
Included Abox-in 160-L, item no. 1243510
Included only in the twin column
Connection
Supplied coupling terminals, 5 pcs.
Elnr: 1221616, 1221617, 3x 1221615
Included only in the twin column
Mounting of charging station
The charging station’s backplate is attached to the column with 4 M4 nuts. (Supplied)
Lock the front cover
Standard panel lock, triangular
Delivery information
This product is delivered directly from the manufacturer, and is usually dispatched next day via a 24 hour service.
Delivery tracking information will be added to your order, and emailed automatically, as soon as it is available
