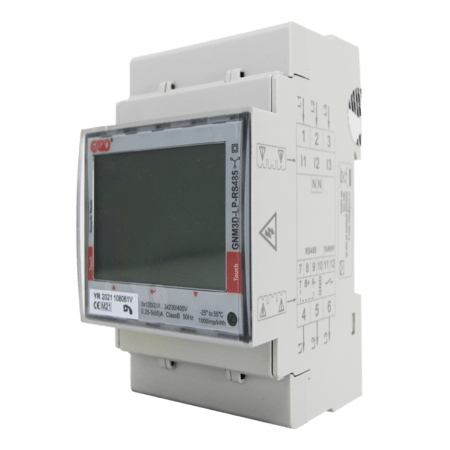

GARO 3-phase Modbus Meter 65A. GNM3D-RS485

Product Specifications

• The GNM3D meter operates with a power consumption of ≤ 1 W and supports a maximum continuous current of 5 A, with a startup current of 0.25 A.
• It functions within a working voltage range of 208 – 400V AC and a frequency of 45-65 Hz. ​
• Accuracy classes include Class 1 for active energy and Class 2 for reactive energy, adhering to EN62053 standards. ​
• Operating temperature ranges from -25 to +55 °C, with storage capabilities up to 65 °C.

Environmental and Electrical Compliance

• Designed for indoor use, the meter meets Mechanical Environment M2 and Electromagnetic Environment E2 standards as per the 2014/32/EU Directive. ​
• It complies with the Low Voltage Directive (LVD), EMC Directive, and RoHS Directive, confirming adherence to relevant harmonized standards.

Output and Communication Features ​

• The meter features a Modbus RS485 communication port and M-Bus protocol output, providing 1000 impulses/kWh proportional to measured active energy. ​
• Pulse output duration is 90 ms, with a color indication of red and orange. ​

Manufacturer Information

• Manufactured by GARO AB, located in Gnosjö, Sweden, with contact details provided for further inquiries. ​
• The declaration of conformity is signed by Kent Andersson, confirming compliance with applicable EU directives and standards.
