WMEPME10/LB
The Pen-loss consumer unit is designed to provide a safe and compliant alternative to earth electrode/rod when installing a domestic electric vehicle charging point. This unit continually monitors the electrical system and in the event of a fault it automatically disconnects all poles including the earth conductor.
This board also comes with a load balancing monitoring relay: Modularization design 18mm width, sensitivity: 20A~110A adjustable, comply with IEC60947-5-1.
IP40 rated Available in 20A & 40A options BS7671 18th edition compliant Protects all types of EV charge points Built in type a RCBO providing overload & 30mA fault current protection Built in electrical contactor No earth electrode/rod required
c/w CT clamp
Available with either 40A A-type RCBO or 100A Main switch

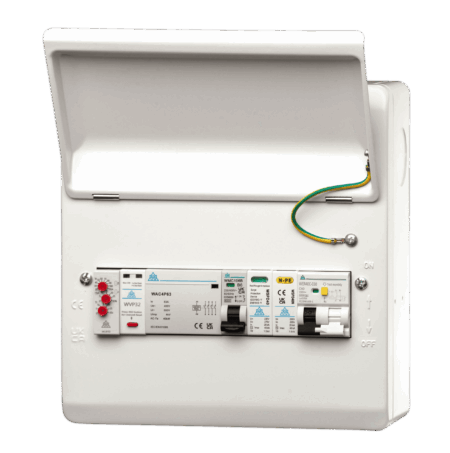

IP20 version shown.
