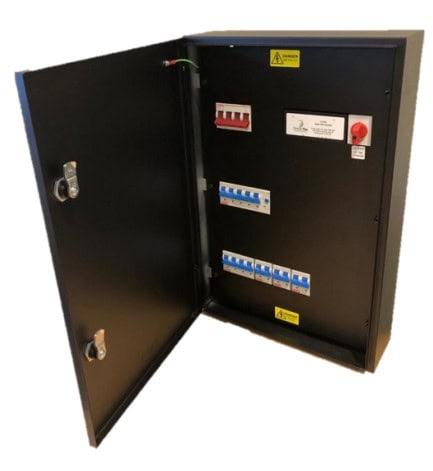

matt:e EVU-1-32-TP-3-32-M Connection centre with O-PEN® and manual reset 5 pole isolator with 1 x 32A TPN and 3 x 32A DP MCBs.
£854.68
{£1,025.62} Inc VAT
matt:e EVU-1-32-TP-3-32-M Connection centre with O-PEN® and manual reset 5 pole isolator with 1 x 32A TPN and 3 x 32A DP MCBs.
The EVU-1-32-TP-3-32-M from matt:e is simple single dedicated connection unit with built in O-PEN technology, which allows for the connection of EV charge points to the existing PME earthing facility.
The unit incorporates a 5 pole isolator with UV release that disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671,
2018 Amendment 1 2020 Regulation 722.411.4.1 (iii)
The O-PEN technology does not require earth rods or measuring electrodes to function correctly.
Product Features and benefits
- Built in O-PEN technology
- Standard mild steel IP4X enclosure
- NO EARTH ELECTRODES REQUIRED
- Phase loss protection
- Built in 5 pole mains isolator with manually resettable UV trip
- Standard 1 Year parts warranty
- Simple wire in wire out connection
- With MCBs
- Designed and Built in the UK
Specifications
- Input Volts – Nominal input voltage three-phase 400V 50Hz
- Max Load- 32 amps per load
- Cable Entry Facility – Top and bottom
- Terminal Capacity Supply – 50.0 mm2
- Terminal Capacity Load – 25.0 mm2
- Dimensions ( H x W x D )- 550mm x 360mm x 140mm
- Weight – Approximately 10kG
- Enclosure – Mild Steel Powder Coated
- Ingress Protection – IP4X
- Warranty – 1 year
