matt:e EVU-1-32-TP-M Connection centre with O-PEN® and manual reset 5 pole isolator with 1 x 32A TPN MCBs.
£544.28
{£653.14} Inc VAT

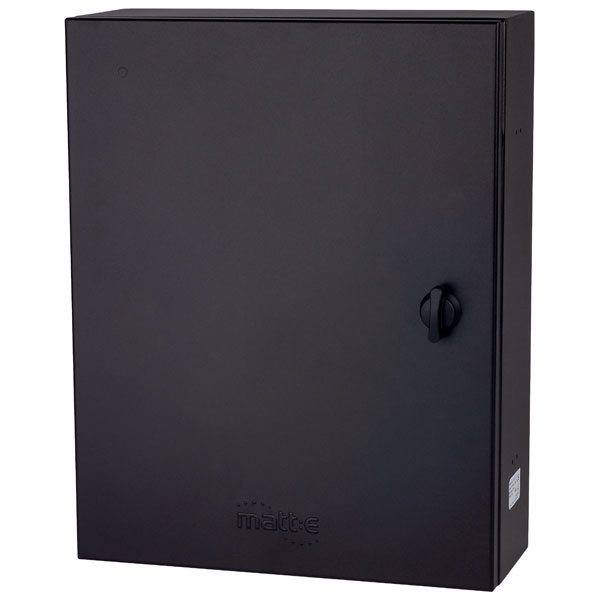

matt:e EVU-1-32-TP-M Connection centre with O-PEN® and manual reset 5 pole isolator with 1 x 32A TPN MCBs.
The EV-1-32-M from matt:e is a simple, single dedicated connection unit with built in O-PEN technology, which allows for the connection of a 32A 3-phase EV charge point to an existing PME earthing facility.

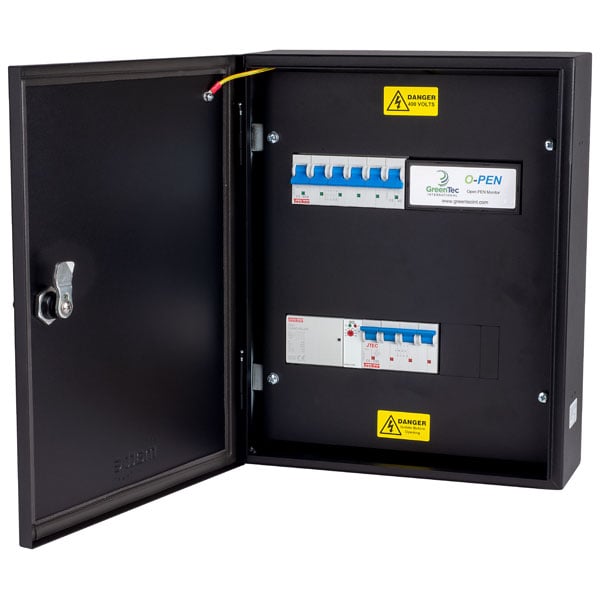

The unit incorporates a 5-pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault. It is manually resettable in line with BS: 7671.
The matt:e O-PEN technology does not require earth rods or measuring electrodes to function correctly.
Product Features and benefits
- Built in matt:e O-PEN technology
- Standard mild steel IP4X enclosure
- No Earth electrodes required
- Phase-loss protection
- Built-in 5-pole mains isolator
- Manually resettable shunt trip
- Standard 1 year parts warranty
- Simple wire-in, wire-out connection
- Fitted with 1x 32A 4-pole Type C MCB
- Designed and Built in the UK
- Matt:E type EV-1-32-M
Specifications
- Colour- Black
- Dimensions (H x W x D)- 380 x 316 x 120mm
- Finish- Powder-coated
- Frequency- 50Hz
- Guarantee- 1 year
- IP rating- IP4X (Indoor)
- Material- Mild steel
- Voltage rating- 400V, 3-phase
- Auto Reset Function- No
- Incoming Supply Rating – 32A
- Load Curtailment- No
- Protection Included – MCB only
- Build Type – Pre-configured connection centre
- Main Incoming Supply- 3-phase (415V)
