matt:e ARD-1-100-TP-SPD Connection centre with O-PEN®, automatic reset 5 pole isolator & Type 2 SPD suitable for loads up to 100A.
£970.00
{£1,164.00} Inc VAT
matt:e ARD-1-100-TP-SPD Connection centre with O-PEN®, automatic reset 5 pole isolator & Type 2 SPD suitable for loads up to 100A.
The matt:e ARD-1-100-TP-SPD is a 3-phase connection unit, with a unique 5-pole auto-reset isolator device and built-in Type 2 SPD, suitable for 1 x 100A TPN load.
Simple to install, it provides a dedicated EV connection unit with built in O-PEN® technology that allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1.(iii).
Product Features and benefits
- Built in O-PEN® technology
- No Earth electrodes required
- Facilitates compliance with regulation 722.411.4.1 (iii)
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- For 1 x 100A TPN load

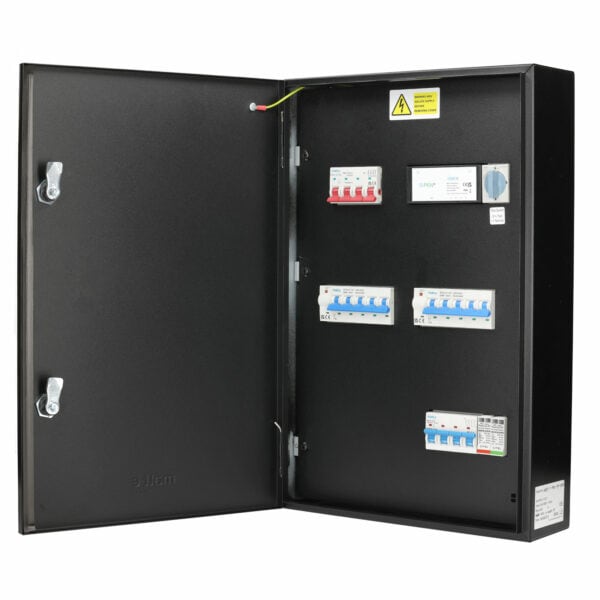

- Complete with Type 2 SPD & 5-pole Auto-reset Isolator

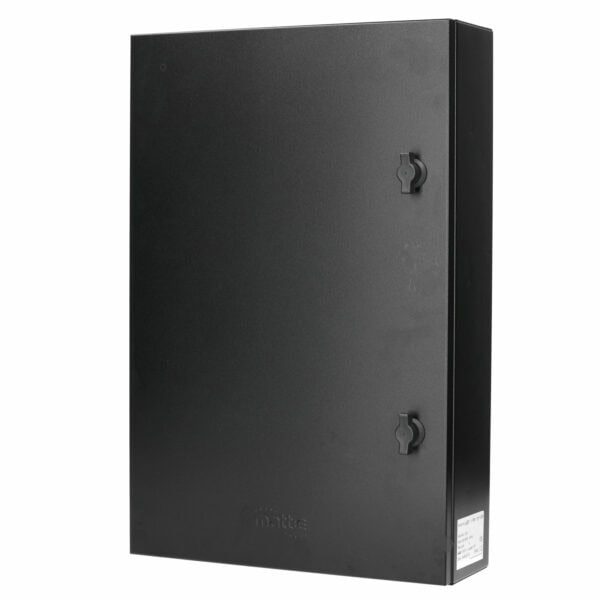

- Mild steel IP4X enclosure
- Standard 1 Year parts warranty
- Designed and Built in the UK
- Matt:e type ARD-1-100-TP-SPD
Specifications
- Colour- Black
- Dimensions (H x W x D)- 550 x 360 x 120mm
- Voltage rating- 400V, 3-phase
- Frequency- 50Hz
- Max Load- 100A
- IP rating- IP4X (Indoor)
- Material- Mild steel
- Finish- Powder-coated
- Guarantee- 1 year
- Build Type- Pre-configured connection centre
- Main Incoming Supply- 3-phase (400V)
- SPD Included- Yes
- Terminal Capacity- 25mm²
