matt:e ARD-2-32-TP-M-SPD Connection centre with O-PEN®, automatic reset 5 pole isolator with 2 x 32A TPN MCBs & Type 2 SPD.
£954.70
{£1,145.64} Inc VAT
matt:e ARD-2-32-TP-M-SPD Connection centre with O-PEN®, automatic reset 5 pole isolator with 2 x 32A TPN MCBs & Type 2 SPD.

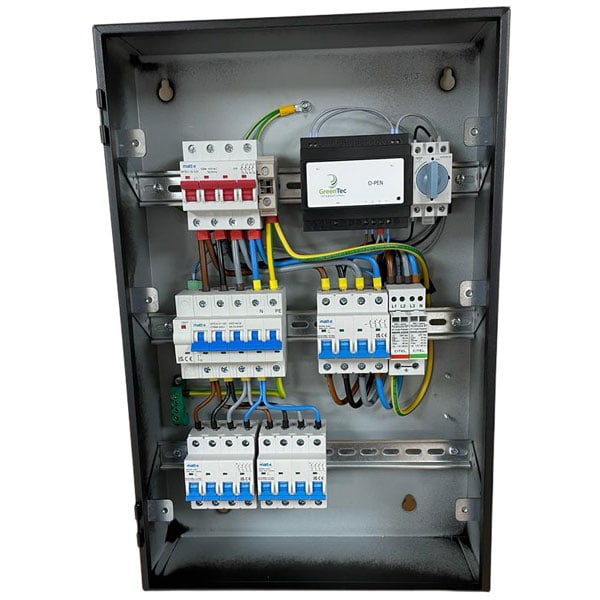

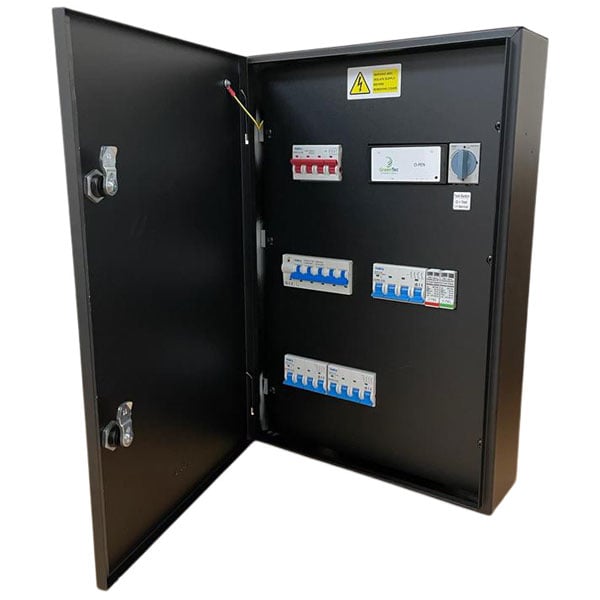

The matt:e ARD-2-32-TP-M-SPD is a 3-phase connection unit, with a unique 5-pole auto-reset isolator device, built-in Type 2 SPD, and 2 x 32A TPN MCB.
Simple to install, it provides a dedicated EV connection unit with built in O-PEN® technology that allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1.(iii).
Product Features and benefits
- Built in O-PEN® technology
- No Earth electrodes required
- Facilitates compliance with regulation 722.411.4.1 (iii)
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- Complete with Type 2 SPD & 5-pole Auto-reset Isolator
- Built-in 2 x 32A TPN MCB
- Mild steel IP4X enclosure
- Standard 1 Year parts warranty
- Designed and Built in the UK
- Matt:e type ARD-2-32-TP-M-SPD
Specifications
- Colour- Black
- Dimensions (H x W x D)- 550 x 360 x 120mm
- Voltage rating- 400V, 3-phase
- Frequency- 50Hz
- Max Load- 63A
- IP rating- IP4X (Indoor)
- Material- Mild steel
- Finish- Powder-coated
- Guarantee- 1 year
- Build Type- Pre-configured connection centre
- Main Incoming Supply- 3-phase (400V)
- SPD Included- Yes
- Terminal Capacity- 25mm²
Downloads
Delivery information
This product is delivered directly from the manufacturer, and will be prepared to your specific order.
Dispatch is 4-7 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available.
Made to Order
This item is made to order, or shipped from overseas to order. Please expect a 3-5 working day lead time before dispatch.
Under our Returns policy, this items is not eligible for return, for either business customers or consumers.
-
