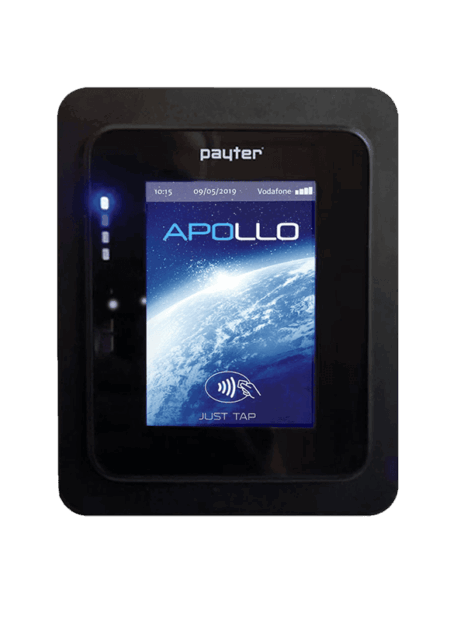

Payter Apollo P66 payment terminal (with modem)
£575.00
{£690.00} Inc VAT
The Apollo is the best-in-class secured contactless terminal, supporting Pin Entry for Unattended Environments.
Power supply included
We recommend this link for more information on Payter’s EV payment solutions.
For EV charging applications, this terminal couples perfectly with the e.park payment post – see below.
UK EV Installers recommends Tap Electric to manage the payment process. For customers of our chargers and payment terminals we can make an introduction to the team at Tap Electric.
Note that this product is not eligible for return or refund, once dispatched.
Apollo video
Technical Specification
Technical Specification
Contactless Interface
EMVCo. L1 v33.0
Certificate ISO14443 Type A & B (T=CL)
Mifare Classic protocol
Desfire protocol EV2/3
ISO18092: Support NFC protocol
Certificate ISO14443 Type A & B (T=CL)
Mifare Classic protocol
Desfire protocol EV2/3
ISO18092: Support NFC protocol
Operating Distance
Depending on the card/token, up to 10cm from reader
Memory
256Mb, DDR3-800
Audio
Internal speaker, mono audio and playback. Buzzer
Integrated Sensor
Ambient light sensor
Communications Part
RJ45 connector, Ethernet (100base-TX, 10base-10) network port IEEE 802.11b/g/n W-LAN, GSM/GPRS/LTE CAT 1 Modem (optional)
Expansion Modules (Optional)
Pulse I/O Expansion module
Environmental
Operating temperature -20 to 55°C
Storage temperature -20 to 70°C
Humidity 10 to 90 RH Non-condensing
Apollo – IP 65
ApolloMax – IP 50
ApolloPolar – IP 54
IK 9 ‘vandal’ proof
Storage temperature -20 to 70°C
Humidity 10 to 90 RH Non-condensing
Apollo – IP 65
ApolloMax – IP 50
ApolloPolar – IP 54
IK 9 ‘vandal’ proof
Integrated MSR*
3 Track
Contact Card Interface*
EMV L1 v4.3 Certificate
LED Indicators
4 RGB LED’s
Display
3.5’ IPS LCD Display, backlight 320×480
256k colour palette
Capacitive touch screen interface
256k colour palette
Capacitive touch screen interface
CPU
ARM cortex A7 core operating at 528MHz with ARM TrustZonetechnology
Barcode Reader
Intergrated QR barcode scanner
Peripheral Ports
USB-C, dual role port capacity of powering expansion modules. MDB Port
Compliances
CE, FCC, RoHS, WEEE, EMVCo MasterCard, Visa and PCI
Dimensions
European Vending Association Compliant frame
Apollo 83.2 x 107.2 x 28.5 mm (LxWxH)
ApolloMax 86.5 x 107.2 x 39.5 mm (LxWxH)
Power Supply
110 – 230 VAC, Power Supply with 1.5m cable. MDB port 12-24 VDC
Li-Ion Rechargeable Battery for security
Li-Ion Rechargeable Battery for security
NOTE
*ApolloMax Only
Returns Exclusion
Due to the nature of this product, or our supplier’s terms of supply, this is a non-refundable item, to both business customers, or consumers.
This means that if purchased, and delivery is completed, the product may not be returned for a refund.
-
-
